Ray5 10W Laserstecher

Lorem ipsum dolor sit amet, consectetur adipisicing elit, sed do eiusmod tempor inSupport engraving materials：All wood, paper, plastic, leather, PCB board, aluminum oxide, non-reflective plating, and lacquered metal.Support cutting materials： Cardboard, non-woven fabric, light wood, Acrylic material, thin plastic board.The newly launched Ray5 10W has better performance. The 10W laser head adopts compressed double beam technology: the new technology makes the laser power larger, the spot (0.06mm) and the laser beam are finer, the laser focal length is longer (50mm), and the energy Higher density, stronger cutting ability, can easily cut 20mm pine board. 0.06*0.06mm laser spot, 0.01mm engraving precision means Ray5 engraving is more accurate, the texture is clearer, and the pattern is more delicate and beautiful. The high-speed 10000mm/min, smooth composite frame structure makes the RAY5 run stably, and there will be no vibration during operation to cause the laser to shift, ensuring the engraving accuracy, the lines are coherent and clear, and the engraving produces less sawtooth.cididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur.

The spot refers to the diameter of the light emitted by the laser tube and the spot that hits the material.To evaluate the quality and performance of any laser module or laser cutting & engraving machine, here are the four most important aspects to be concerned.Working power of laser: It's obvious that a higher working power ensures a more powerful laser spot to process more materials. Our working power of each LD is 5W and our laser module combines two LDs into one focused laser beam for the optimized results. (Most market product options claimed their power by electronics power instead of working power, that’s quite misleading and provides no valuable information.)Size & Diameter of laser spot: When the same power or energy is focused on a smaller spot, it would offer a stronger penetration force. Since light is collimated ahead before being compressed again by C-lens, LD+FAC+C-lens provides a laser spot of 0.08mm diameter in both fast-axis and slow-axis. AndThe divergence angle of fast-axis: For laser light, when the divergence angle is larger at the fast-axis direction, the light and energy are with really pour focus and becomes weak. In an LD+FAC+C-lens module, the divergence angle is collimated into a narrow-angle beam to preserve most light and energy into laser spot.Reliability of whole laser system: It can hardly be told which technology has better performance in reliability but a general lifespan of an LD would be over 10,000 hours means you won’t need to replace LD for whole life.Ray5 10W with Dual LD uses the latest FAC laser technology to compress the laser spot, with a super-fine compressed laser focus of 0.06*0.06mm, and the engraving effect is more accurate. And the laser head has a service life of more than 20,000 hours.

People often think that using a laser engraving machine is unsafe, such as fear of causing a fire and hurting your eyes, in fact, if used properly, your laser engraver is much safer than your expected. The newly launched Ray5 10W has 5 safety protections:1. Flame detection function: When the engraving material catches fire, RAY5 can recognize and automatically stop working and alarm2. Displacement detection function: There is a gravity sensor on the main board, if the machine detects unauthorized movement, the laser beam will stop running.3. Motionless protection: When the laser module stops moving for more than 15 seconds, the laser will automatically turn off.4. Fireproof acrylic: With the new laser protection cover, it can quickly prevent burning, and its flame retardant effect is better than other ordinary boards.5. Eye protection function: Ray5 is equipped with the latest panoramic filter glass protective cover, which filters 97% of ultraviolet rays and protects the eyes safely.

The operating power of the laser affects the quality and performance of the laser cutting and engraving machine. Generally speaking, a low-power laser tube will be able to process the same material with the same detail and quality as a high-power laser tube, but a high-power laser tube will allow you to 1) Deeper cuts in a single pass, and 2) Faster engraving on certain materials.The newly launched Ray5 10W has better performance. The 10W laser head adopts compressed double beam technology: the new technology makes the laser power larger, the spot (0.06mm) and the laser beam are finer, the laser focal length is longer (50mm), and the energy Higher density, stronger cutting ability, can easily cut 20mm pine board. 0.06*0.06mm laser spot, 0.01mm engraving precision means Ray5 engraving is more accurate, the texture is clearer, and the pattern is more delicate and beautiful. The high-speed 10000mm/min, smooth composite frame structure makes the RAY5 run stably, and there will be no vibration during operation to cause the laser to shift, ensuring the engraving accuracy, the lines are coherent and clear, and the engraving produces less sawtooth.

RAY5 10W laser engraver is designed for quick assembly and the assembly can generally be completed within 10-20minutes. You also can watch the following Quick Start Guide.

10W model supports more engraving materials, has finer engraving(0.06 * 0.06mm ultra-fine laser spot), and faster engraving speed(10000mm/min) compared to the 5W model. The 5W laser module is suitable for beginner engravers. The 10W laser has larger functions and more functions, and is more suitable for professional engravers or enthusiasts who have greater requirements for engraving.

20w/40w/60w is the Power of Laser machines, its actual laser head output power should be 5W/10W. and it is the laser power that affects the engraving effect. If the laser power of 20W and 60W is the same, the engraving effect is similar.The power Ray5 10W is 60W, the actual laser output power is 10W, and Ray5 10W uses FAC compressed spot technology(the spot size is 0.06 * 0.06mm), the actual engraving effect more accurate.

You can download it directly from the "User Manual" on this web page.This laser engraver support LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10 system..

Ray5 10W with a 3.5-inch touch screen support 3 connection methods: USB, TF card, WIFI offline mode.Except computer,the mobile APP "MKSLaser" available for Android & iOS allows you to use Ray5 directly from your smartphone, not only to control the machine but also to edit the images andthe related engraving parameters on the move.

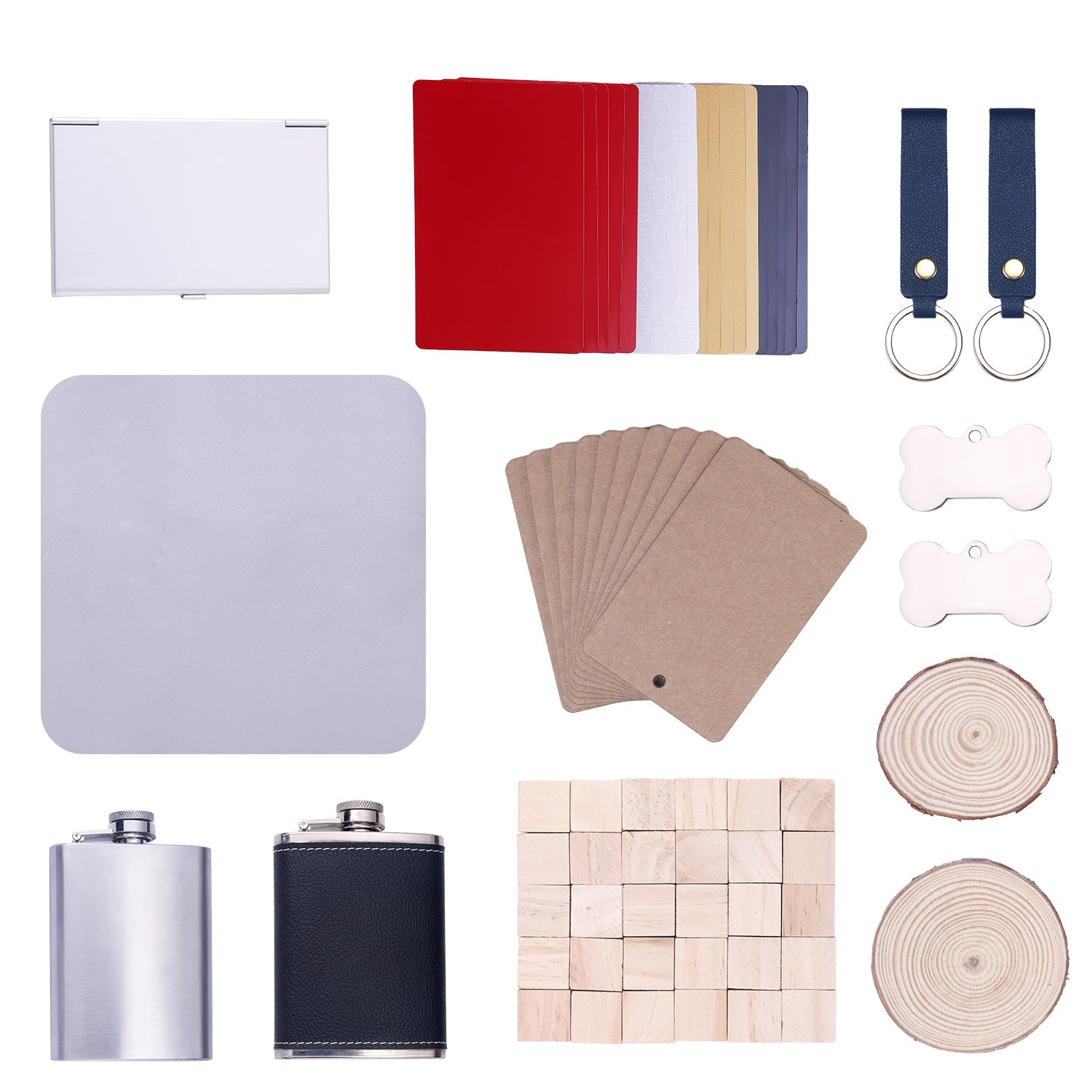

Support engraving materials：All wood, paper, plastic, leather, PCB board, aluminum oxide, non-reflective plating, and lacquered metal.

Support cutting materials： Cardboard, non-woven fabric, light wood, Acrylic material, thin plastic board. Ray5 10Wcan cut 20mm pine board

Ray5 has the capability of working 24 hours continuously with no disruption.

This amazing device has five safety protections: Flame detection/Movement detection/Motionless protection /Emergency Stop Button/Eye Protection

No，RAY5 only has several plysical limits

The 5w and 10w laser heads can be used interchangeably on the same machine. 10w laser head has stronger cutting penetration.

LightBurn Software For Windows(XP/7/8/10) / MAC /Linux； LaserGRBL Software For Windows Only

No it can't. Manual focusing is required

Ray5 10W engraving area is 400*400mm(15.75X15.75In).

Yes. The RAY5 engraving area is 400mmx400mm. However, it is allowed to exceed 400mm in one direction.

For RAY5 10W, I suggest raising the frame up on the corners when the thickness of the plate exceeds 40mm in order to be able to focus and work properly.

No exhaust attachment.There is slight smoke when carving wood, please keep it ventilated.

Also can engraving cylinder, which need a roller, roller can fixed cylinder

For these BMP, JPG, PNG, DXF, AI, SVG, etc picture type, while all the engraver carved out picture are colorless picture.

Yes you can, but it requires the roller attachment to engrave that shape. Also, if you want your engraving to be black vs silver you need the etching compound.

The service life of the laser is about 20,000 hours. If it exceeds this time, you need to replace.

Yes, it can , you can engraver your own tools

As a newbie myself, engraving on wood is very easy. The program or software you choose is the key to getting good results. You can try LIGHTBURN for 30 days. After 30 days you can buy the software. I am half way throught the free part, and it a real learning curve on getting things setting up on the software...but, you will have good support with LIGHTBURN. They answer your questions very quickly so you can continue with your project. If you have experience with CAD, you should not have any problems. Another program you can use is LASERGRBL. As I said, I am using LIGHTBURN because there is many more thing you can engrave on, like metal, stone, ceramic, etc. Just practice on some flat wood, and you will get the hang if it. I had no experience at all with engraving when I bought the same machine, but after I put it together, I engraved my first project in about 2 hours after looking at all the settings in the software, and it turned out great!

Yes, very little operation noise.Ray5 laser engraver machine is design for home DIY and small order job, Please rest assured to use at home.

The maximum speed can be set is 10000/min，But the speed and energy needs to be set according the material and pattern, Too fast speed may affect the engraving or cutting effect, so we recommend you to adjust the setting according recommended parameters for get a better result.

USA 110V

Depends on a few things. How big of a design are you engraving? The working area of the machine is 400 mm x 400 mm. Is the material engravable? Check the specs for the machine to see if the material can be engraved. Because this is a fixed-focus laser, as the distance between the laser and the object grows, you may start to notice some undesirable artifacts on the piece such as overburn or flashing.

The Ray5 operating temperature is -20 – 50℃. I would think that the main factor would be lubrication of the sealed stepper motors. While oil shouldn't freeze at those temps, the cold could alter the viscosity enough to wear the steppers more than in "normal" temps.

LONGER RAY5 10W laser head with laser nozzle. Air assist can be purchased separately for self upgrading.

Air assist is a small compressor that helps the machine achieve better engraving or laser cutting results by minimizing heat around the laser head, dissipating heat where the laser contacts the workpiece, removing debris from around the contact point, and preventing the workpiece from burning.Summarized, air assist means blowing air onto the path of the laser to remove smoke and debris.

The honeycomb set is a must-have accessory for engraving machines and help to make better engraving effect.With the high-density honeycomb panel, smoke exhausts more easily,material such as wood is not easy to be blackened by smoke, and the edges of the materials are neat and clean.

The kit is plug and play and can be used to engrave cylindrical objects like kettles and cups.

Below is a list of some of the most popular laser engraving ideas: Company logos, Company logos, Signage, Christmas ornaments, Spice jars, QR codes and barcodes for clients, Photo engraving, Personalized products, Business cards, Wine glasses, Key chains, Customized jewelry,Theme toy boxes, Coasters, Artwork, Celebration and special occasion gifts, Custom metal cups.

You can pad a metal plate under the machine.

Yes, but specific parameters need to be adjusted to achieve the best results.

You can engrave stainless steel and aluminum oxide . If you paint the metal surface black before engraving, the engraving effect will be better, because the unpainted metal surface will reflect light and reflect a large part of the laser energy.

The amount of smoke produced by wood of different materials is different. Our commonly used basswood panels produce less smoke. In addition, the parameters of engraving/cutting also affect the amount of smoke.

When used properly, your laser engraver is far safer than your expected.Ray5 has flame detection:When the engraving material catches fire, RAY5 can recognize and automatically stop working and alarm.

Yes.Except computer,the mobile APP "MKSLaser" available for Android & iOS  allows you to use Ray5 directly from your smartphone, not only to control the machine but also to edit   the images andthe related engraving parameters on the move.

Yes, we are equipped with all necessary cables and power adapters, the power supply supports a voltage of 1 10V-240V.

Hi, it can't cut glass. But engraving is ok, and before engraving, you need to put the color paper on it.The light engraving machine can not be directly applied to any mirror reflecting object, which may cause injury to the operator or burn the laser.
