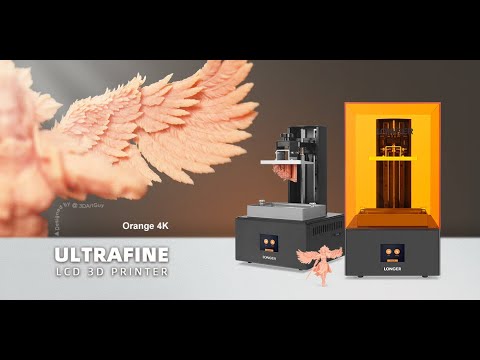

6480*3840 Resolution

10.5/31.5µm of Subpixel

Fast Printing
Mono LCD Screen

Dual Z Axis for Steady Printing

Parallel UV Lighting Sources

Tem. Detection for Long Lifespan
MODEL | Orange 4K |
---|---|
Printing Technology | LCD Stereolithography |
Printed Size | 120*68*190mm (4.7"*2.7"*7.48") |
LCD Screen Size | 5.5 Inch |
Mono Screen Resolution | 6480*3840 (Subpxiel) |
Pixel Size | X: 31.5µm Y: 10.5µm |
Printing Speed | Up to 80mm/h on Mono Version |
Lighting Sources | UV Parallel 405nm LED |
Z Axis | Dual Liner Guide |
Slicing Software | Longerware / Chitubox / Lychee |
Touch Screen | 2.8 Inch |
Printer Dimension | 230*230*437mm (9.16"*9.06"*17.02") |
Package Dimension | 310*310*580mm (12.2"*12.2"*22.83") |
Gross Weight | 11.5KGS |

What's the difference for Orange 4K?
Why Subpixel is BETTER?
If we upgrade the 2K LCD screen to higher resolution for 4K, the pixel size will be driven down to 31.5um. Furthermore, if a pixel can be divided into 3 subpixels, the resolution in one direction will be as fine as 10.5um, which is a dramatic improvement over the 2K LCD screen.
- Compared with Normal 4K Mono Screen
- O4K is X3 in pixel number
- O4K is higher precision
- Normal 4K is 5.5-6.6 inch mono screen without subpixel in comparasion
- Compared with Normal 2K Mono Screen
- O4K is X6 in pixel number
- O4K is X6.7 higher in precision
- Normal 2K is 5.5-6.1 inch mono screen without subpixel in comparasion
Subpixel means smaller size of each pixel and more pixel numbers on screen.
What's the BENEFIT of subpixel?
With the algorithm embedded in Longerware and firmware, the UV exposure through each subpixel will be controlled accurately to deliver final 3D models with ultra-smooth surfaces and ultra-fine details.
- Compared with Normal 2K Mono Screen
- O4K is much Finer of model
- O4K is much Smoother of surface
- Normal 2K is 5.5-6.1 inch mono screen without subpixel in comparasion
- Compared with Normal 4K Mono Screen
- O4K is finer of model
- O4K is Smoother on surface
- Normal 4K is 5.5-6.6 inch mono screen without subpixel in comparasion
Subpixel will delivery BETTER QUALITY of printing!

Ultrafine Precision at 10.5/31.5µm
Orange 4K 3d printer is reaching at 6480*3840 in resolution with 10.5/31.5µm of subpixel, which will provide much finer and better quality on printing

5.5" Mono Screen with Protector
This resin 3d printer build with mono screen and come with screen protector to provide longer lifespan on printing and better protection for screen

Fast Printing with Mono Screen
This LCD 3D Printer is able to print by 1.5s/layer on exposure time and provide super fast printing than color screen, dramatically increased by 2.5-3 times

Parallel UV Lighting Sources
Orange 4K is configurated with parallel UV LED for uniform and intensity of illumination, and provide better performanace on printing quality

Dual Z Axis Design
LONGER Orange 4K 3d printer is equipped with dual Z axis linear guides for more steady printing, it could be performed much better and stable for tiny details

Full Metal Body
Orange 4K is built with full metal body to keep whole printing procedure more in steady and less wobble, providing reliable quality of printing
Printed by Orange 4K
Parts List in Package

Manual x 1

USB Disk x 1

Scraper x 1

3M Fitter Funnel x 2

Tool Set x 1

Power Cord x 1

Gloves x 2

Wiper Paper x 1

Clean Cards x 5
