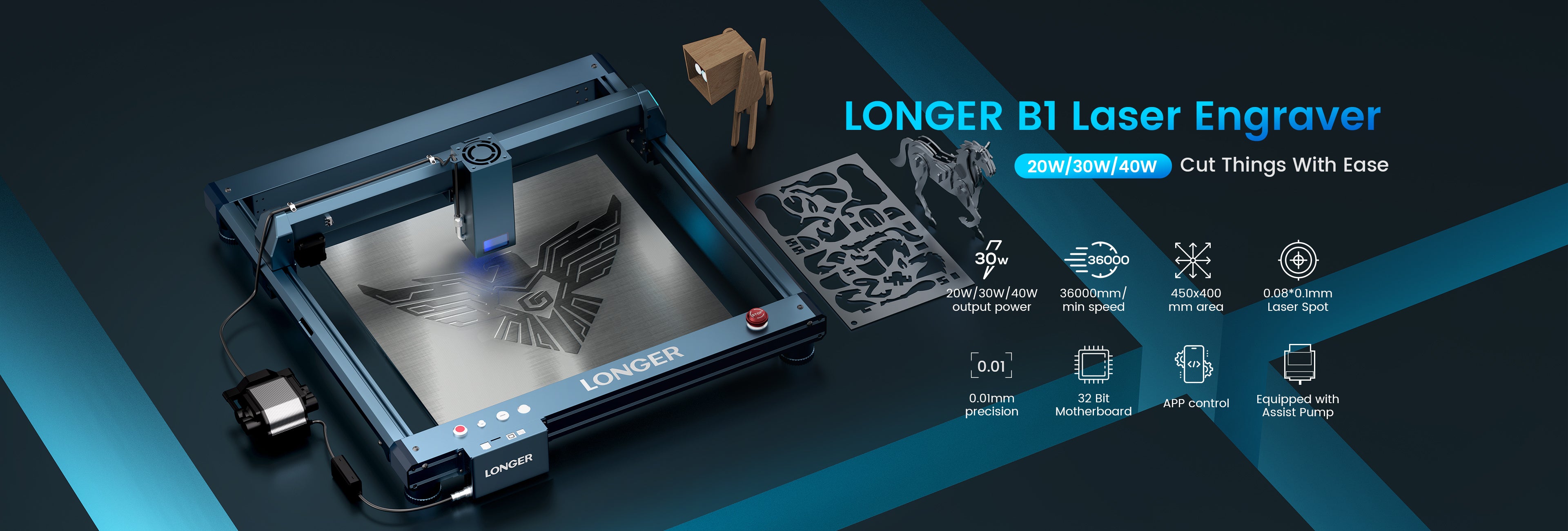

44-48W Output & 8-Core Laser Head and Improved Cutting Power
The Laser B1 boasts one of the strongest diode lasers available today.The highly concentrated laser beam increases cutting capabilities by 20%, and can cut through 40mm basswood and 50mm acrylic.
Bigger Frame
The Laser B1 boasts a working area of 450 x 440 mm, an increase of 23.75% compared to competitors. This is ideal for A3 panels.
36,000mm/min High Speed
Laser B1 is equipped with a new 32-bit motherboard, which allows engraving speed up to 36,000mm/min, four times faster than ordinary laser engraving machines. In addition, TMC2209 silent drivers is used to effectively reduce the noise of operation, providing a faster and more enjoyable experience.

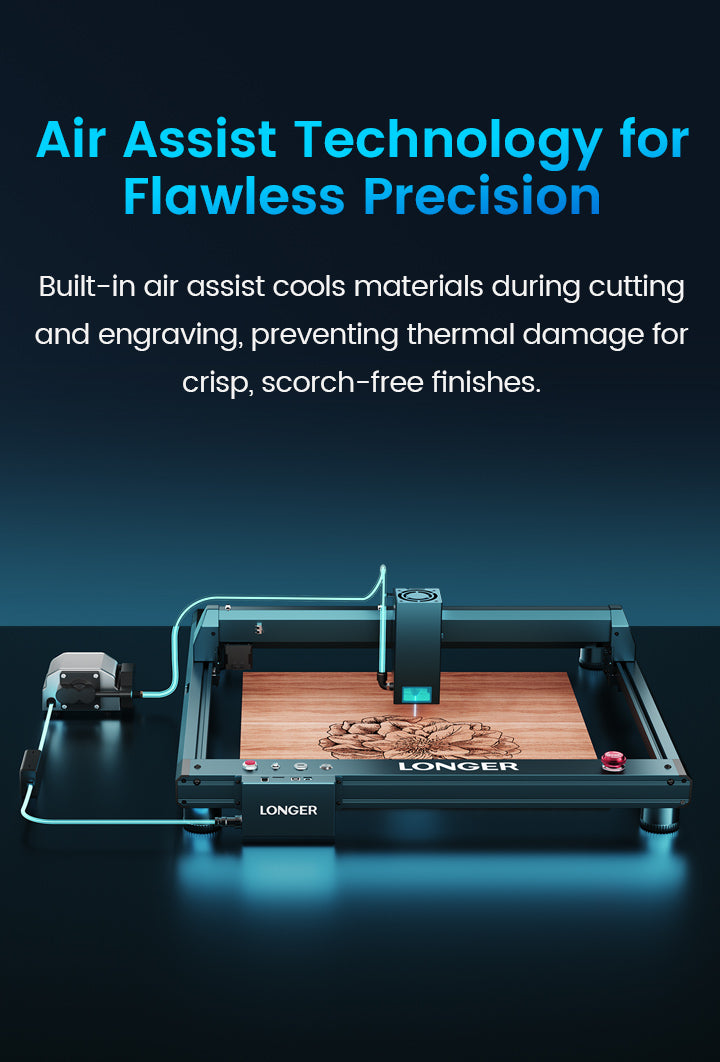

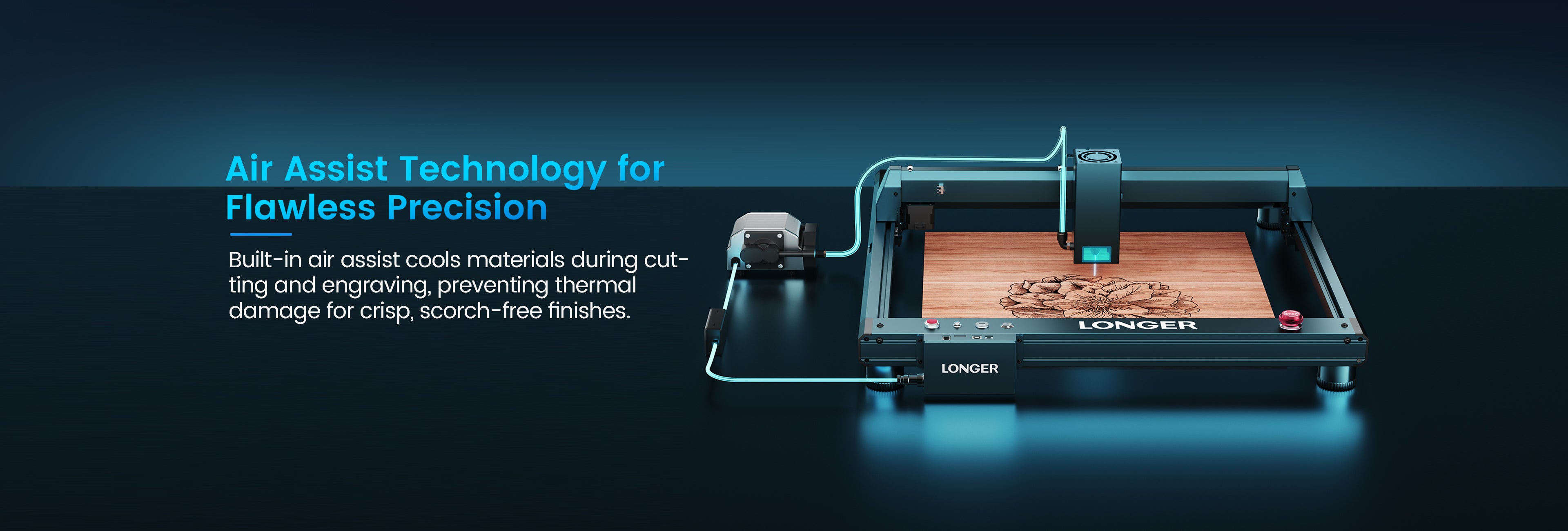

Smart Air-Assist System
The Air-assist pump can be automatically turned on and off, and is directly controlled by the lightburn, improving the precision and quality when cutting.
Multi-Color Engravingeds.
A high-energy laser beam instantly oxidizes metal, bringing vibrant colors to fulfill your creative ne

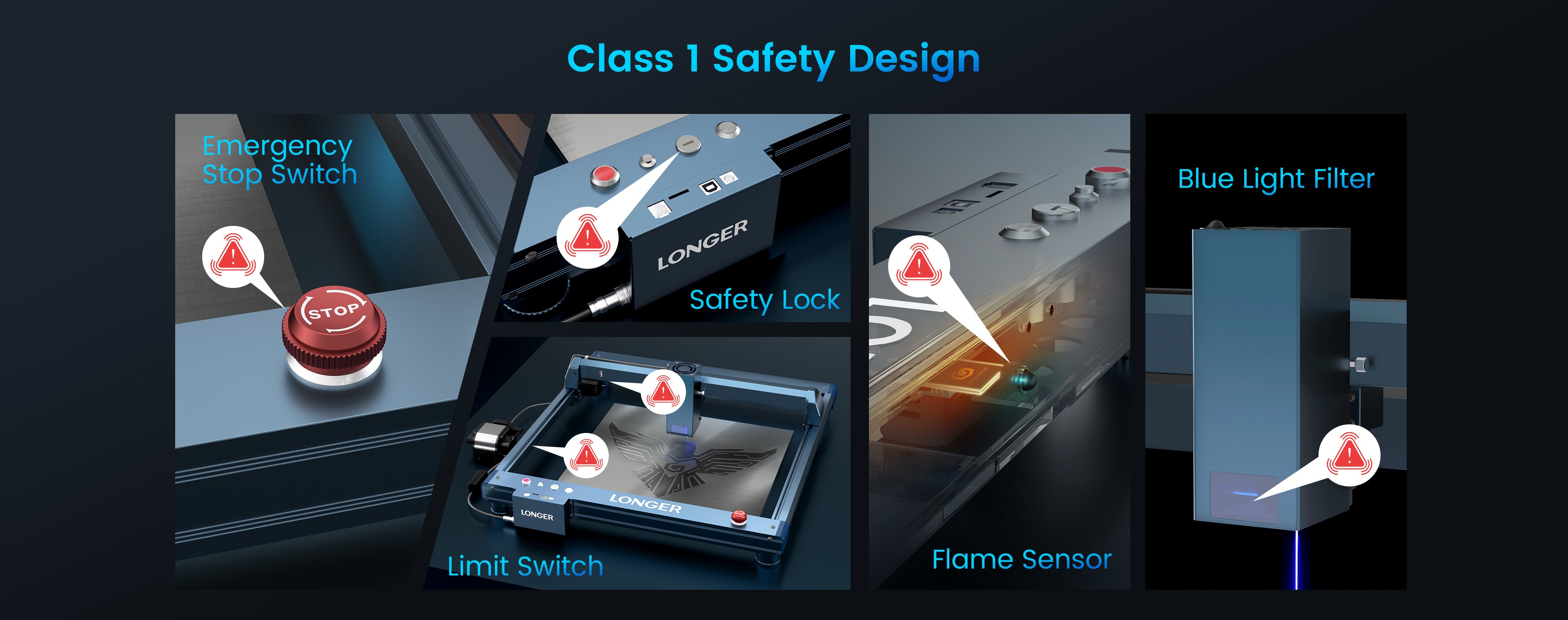

Safety Measures
The B1 boasts eight major safety features including Move/Flame/Offline/Motionless/Security Lock/Eye Protection/Emergency Stop/Zero Reset.
Wide Variety of Uses
The 40W laser can cut or engrave over 1000 different materials, such as wood，steel, leather, acrylic, cloth, and more.
Excellent heat dissipation system
The Laser B1 40W is equipped with an excellent heat dissipation system, so that it can avoid overheating even under long-term, high-intensity working conditions
Focus Positioning Bar
The laser integrates an easy-to-use pull-down focus bar
Laser Lens Protection
The laser module is equipped with a replaceable lens and dust-proof hood which prevents smoke from polluting the lens.

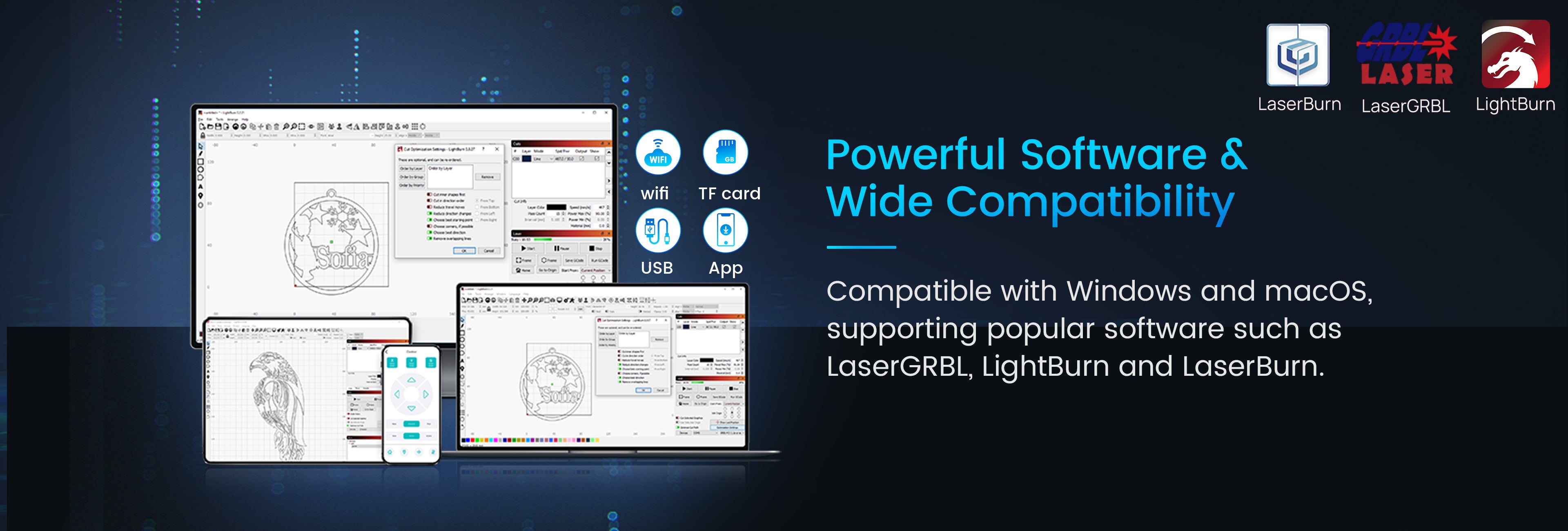

Software Compatibility
Compatible with LaserGRBL, LightBurn and supports Windows 7+, macOS, and Linux.Supported file formats: JPG, PNG, BMP, G- code, GIF, SVG, NC, GC, etc.
Multiple Data Transfer Options
Supports Wi-Fi, USB, APP and TF cards. The Ray5 is not limited to a physical computer connection.
Clean Design
The Laser B1 40W uses a clean design for the easiest way to use.

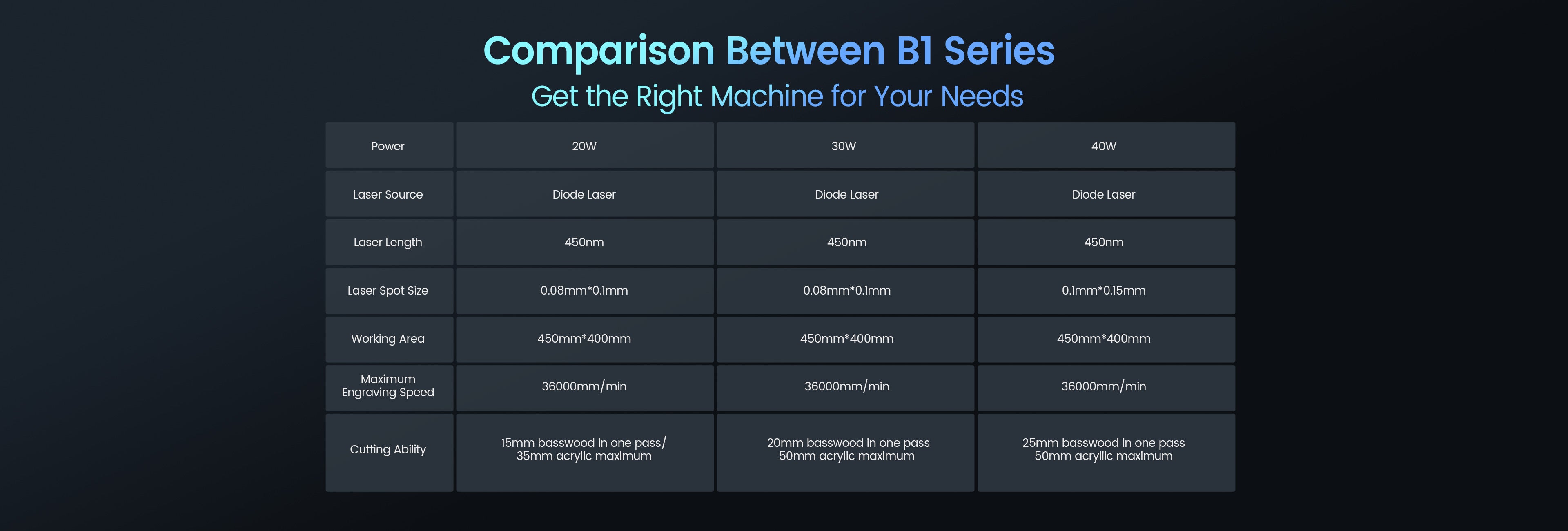

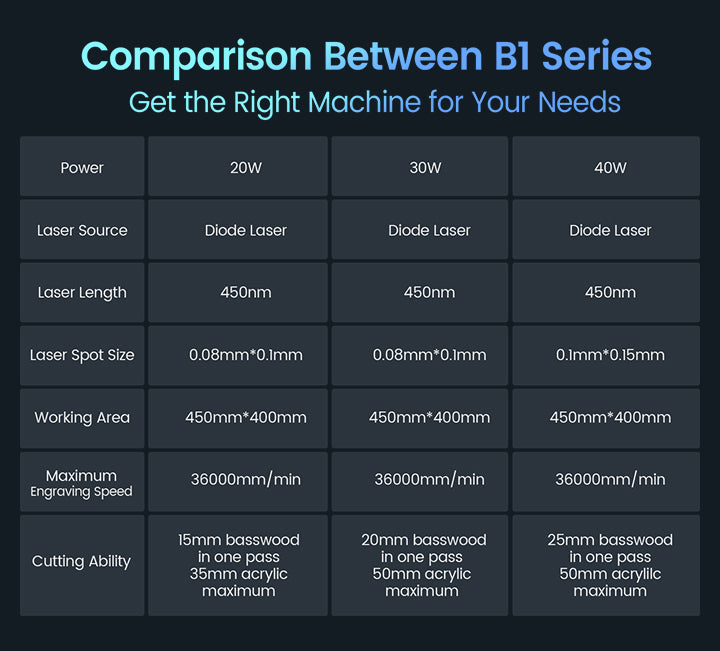

| Model number | Laser B1 40W | Laser B1 30W |
|---|---|---|
| Laser technology | Diode Laser Technology | Diode Laser Technology |
| Work area | 450x440mm (17.72x17.32inch) | 450x440mm (17.72x17.32inch) |
| Laser wavelength | 450nm | 450nm |
| Focal length | Fixed Focus-50mm | Fixed Focus-50mm |
| Laser spot size | 0.10x0.15mm | 0.08x0.1mm |
| Optical output power | 44-48W | 33~36W |
| Z axis - height range | Up to 50mm | Up to 50mm |
| The fastest working speed | 36000mm/min | 36000mm/min |
| Engraving machine output | DC24V 9A 216W | DC24V 7.5A 180W |
| Engraving machine input | AC 110-240V, 50/60Hz | AC 110-240V, 50/60Hz |
| Software | LaserGRBL on XP/7/8/10 (Free)，LightBurn on Windows, Mac OS, and Linux | LaserGRBL on XP/7/8/10 (Free)，LightBurn on Windows, Mac OS, and Linux |
| Connect | USB / TF Card / Wifi / APP | USB / TF Card / Wifi / APP |
| Engraving technique | Eight diode lasers with FAC | Six diode lasers with FAC |
| Cutting parameters one-pass | 25mm paulownia wood, 15mm black acrylic, 0.15mm stainless steel plate | 20mm paulownia wood, 10mm black acrylic, 0.1mm stainless steel plate |
| Cut maximum | 40mm basswood, 50mm black acrylic | 25mm basswood, 50mm black acrylic |
| Laser head life | 10000+ hours | 10000+ hours |
| Rated power | 175W | 145W |
| Motherboard | 32-bit motherboard | 32-bit motherboard |

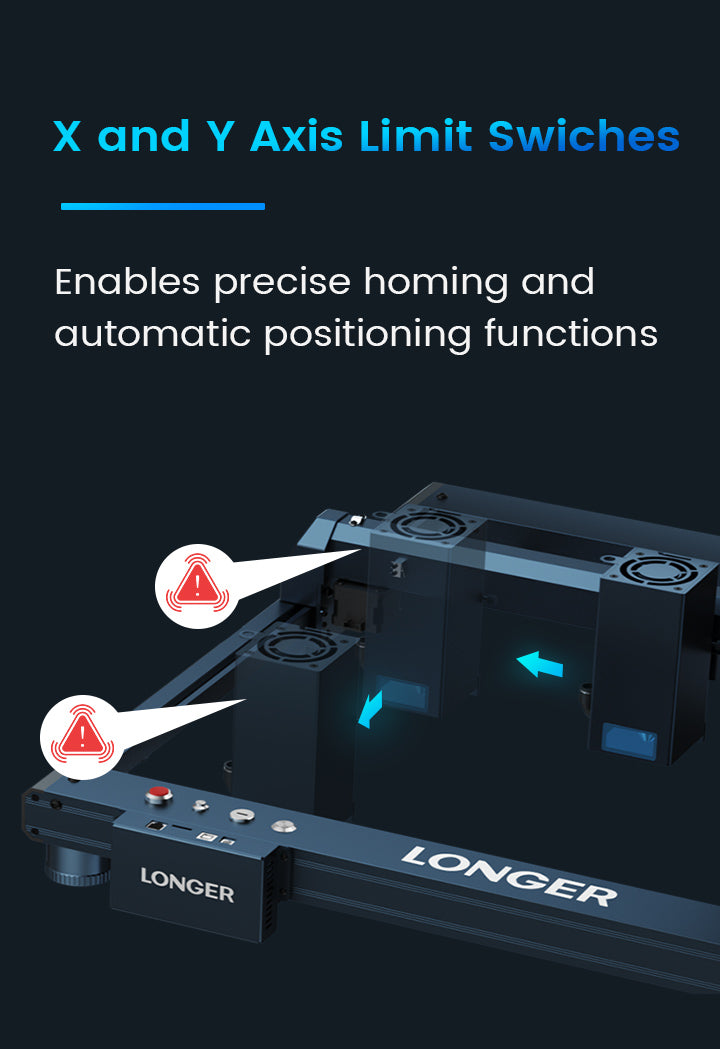

| Limit switch | X Y-axis limit switches | X Y-axis limit switches |
| Compatible device | PC, mobiles | PC, mobiles |
