20W Powerful Cutting

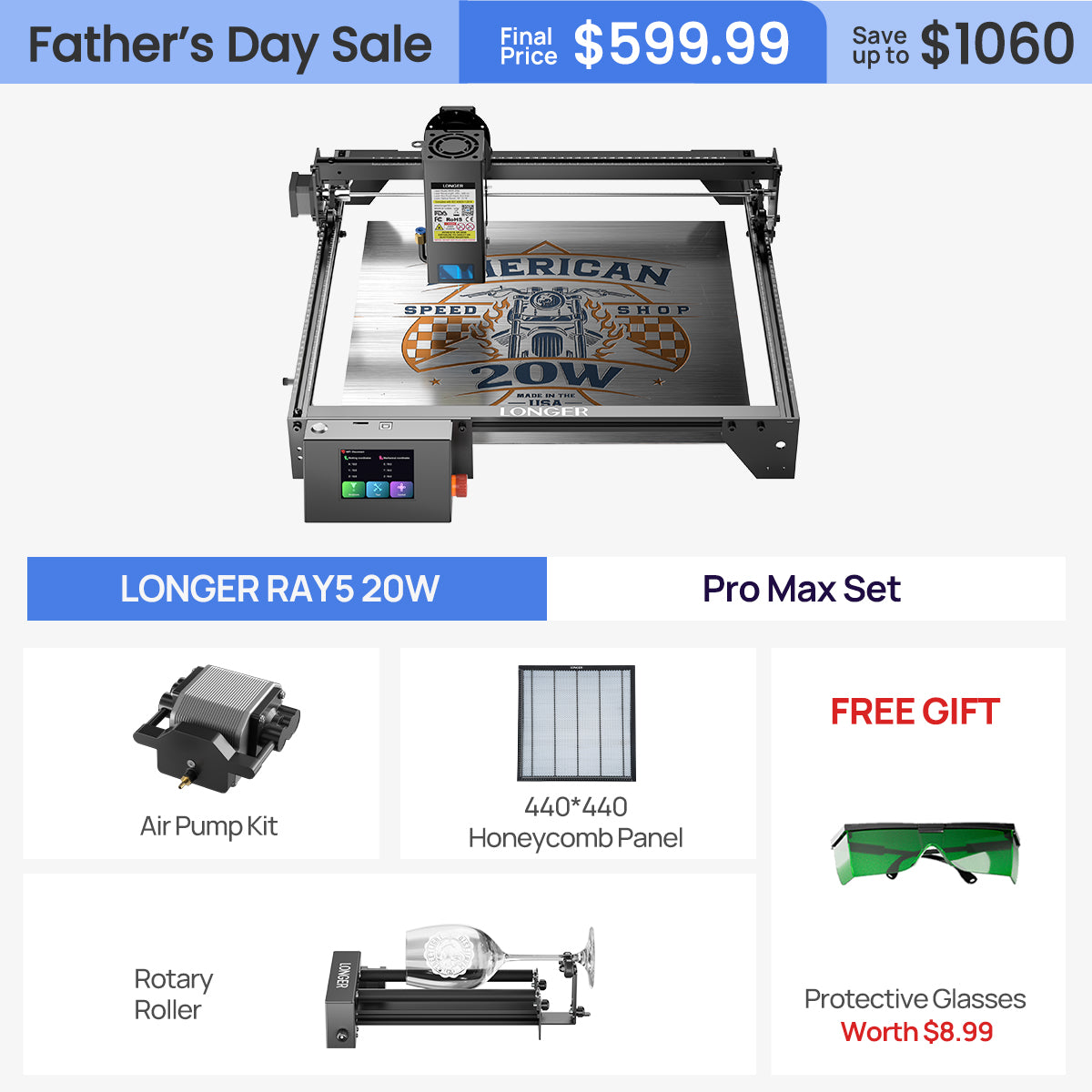

Ray5 20W has a 20W optical output laser modules. This powerful laser largely enhances the cutting capacity. It can cut 0.59"/15mm pine wood and 0.31"/8mm acrylic in one pass, 25mm wood and 35mm acrylic in multiple passes, and cut 0.002"/0.05mm stainless steel.
0.08*0.1mm² High Accuracy Laser Spot
With the latest compressed laser technology, the laser spot is as tiny as 0.08*0.1mm², thus engraving thinner lines, clearer texture, more delicate and beautiful artworks.


Higher Productivity
Stronger power leads to higher engraving & cutting speed, and more applicable materials. Ideal choice for your professional office, workshops or factories.
Multi-Color Engraving
The 20W high-energy laser beam instantly oxidizes the metal surface, bringing rich colors to fulfill your colorful creative needs.


XY-axis Limit Switches
Added X-axis and Y-axis limit switches, which can accurately locate the position of the laser module. At the same time, if the laser module moves in the negative direction of the X-axis or Y-axis, Ray5 20W will trigger an alarm and restrict the movement.
5 Safety Protections
Move/Thermal/Offline/Motionless/Eye Protections are all installed. Laser shuts down when tilted, flame, data connection interruption and laser head freezing over 15 seconds are detected. In addition, the panoramic filter glass can effectively filter the laser, safer to use.


Laser Lens Protection
The 20W laser module is equipped with a replaceable protective lens and dust-proof hood which effectively prevents the smoke from polluting the laser lens, and greatly improve the working hours of the laser module.

Multiple Transfer Ways
Data can be transferred via different methods of Wi-Fi, USB cable, APP and TF cards , which supports offline operations. You can use Ray5 anywhere, without the limits of physical connection to a computer.

Multiple Machines Control
One computer can control multiple Ray5 laser engravers work parallelly, Whether it is Ray5 5W, Ray5 10W or Ray5 20W, and improve the production efficiency.

Wide Compatibility
Ray5 20W is compatible with various mature carving software, such as LaserGRBL, LightBurn, supports Windows 7+, macOS, Linux; carving file formats Support JPG, PNG, BMP, G- code, GIF, SVG, NC, GC, etc.

3.5" Touch Screen
3.5-inch smart built-in color screen, it does not need to connect the laser engraving equipment to the computer, supports offline operations.

Adjust Focus Easily
The focus plate is easy to focuse. And there is a 1mm pitch scale on the laser module, which can precisely adjust the focal length according to the thickness of the material for engraving and cutting.

32-Bit Chipset
Ray5 20W is built with an ESP32 chipset, which is running at 240MHz. Faster and more powerful than comparably equipped machines with 8-bit chipset.
Model Number | Ray5 20W | Ray5 10W | Ray5 5W |
---|---|---|---|
Laser Technology | Dioser Technology | Dioser Technology | Dioser Technology |
Working Area | 375x375 mm (14.76x14.76 inch) | 400x400mm (15.75x15.75inch) | 400x400mm (15.75x15.75inch) |
Laser Wavelength | 450 - 460 nm | 450nm | 450nm |
Focal Length | Fixed Focus-40mm | Fixed Focus-50mm | Fixed Focus-30mm |
Laser Spot Size | 0.08x0.10mm | 0.06x0.06mm | 0.08x0.08mm |
Optical Output Power | 18 - 21 W | 10W | 5W |
Power Max Consumption | 120W | 60W | 40W |
Engraver Output | DC24V5A | DC12V5A | DC12V5A |
Engraver Lnput | AC110-240V | AC110-240V | AC110-240V |
Z Axis-Height Range | Up to 47mm | Up to 47mm | Up to 47mm |
Fastest Working Speed | Speed 10000mm/min | Speed 10000mm/min | Speed 10000mm/min |
Software | LaserGRBL&LightBum | LaserGRBL&LightBum | LaserGRBL&LightBum |
Input Image Format | JPG, PNG, BMP, GIF, SVG, AI, etc. | JPG, PNG, BMP, GIF, SVG, AI, etc. | JPG, PNG, BMP, GIF, SVG, AI, etc. |
Connection type | USB/TF Card/Wifi | USB/TF Card/Wifi | USB/TF Card/Wifi |
limit switches | Yes | Optional | Optional |
Air assist interface | Yes | Optional | Optional |
Laser Engraver Size | 610 x 67 x 200 mm (24.02 x 26.38 x 7.87 inch) | 586 x 583 x 176.5mm (23.07x22.95x6.95inch) | 586 x 583 x 176.5mm (23.07x22.95x6.95inch) |
Packaging Size | 621 x 347 x 127mm (24.45 x 13.66 x 5 inch) | 621x299 x 127mm (24.45 x11.77 x 5 inch) | 621 x 299 x 127mm (24.45 x 11.77 x 5 inch) |
