Transform a 3D model into a 2D image

If you work with laser engravers or digital fabrication tools, you often need to transform 3D model into 2D image formats like PNG or SVG. This is because most laser engraving software only supports flat image inputs. In this guide, you’ll learn how to easily convert a 3D model into a 2D image using built-in Windows tools.

This workflow is especially useful for beginners who want a fast, no-plugin method for preparing engraving-ready files.

Table of Contents

• Quick Answer
• What This Guide Covers
• Why This Process Matters
• Before You Start
• Step-by-Step Tutorial
• Common Problems and Solutions
• Tips for Better Results
• Frequently Asked Questions
• Final Thoughts

Quick Answer

To transform a 3D model into 2D image, open your model in Paint 3D, adjust the viewing angle if needed, then use “Menu → Save as → Image” and export it as a PNG file. Enable the transparency option before saving for laser engraving use.

What This Guide Covers

This tutorial explains how to:

• Import a 3D model into Paint 3D
• Adjust camera angle and framing
• Export a clean 2D image from a 3D object
• Save the output as a transparent PNG
• Use the exported image in laser engraving software

By the end, you’ll be able to convert almost any 3D model into a usable 2D file for engraving or design workflows.

Why This Process Matters

In laser engraving and CNC workflows, input files are always 2D formats such as PNG, JPG, or SVG. However, many design assets begin as 3D models.

Converting a 3D model into a 2D image allows you to:

• Prepare engraving-ready designs quickly
• Capture realistic views of 3D objects
• Simplify complex models into flat artwork
• Improve workflow efficiency for LightBurn or LaserGRBL

This method bridges the gap between 3D design and 2D fabrication output.

Before You Start

Requirements

• Windows 10 (or later)
• Paint 3D preinstalled (or downloaded from Microsoft Store)
• A 3D model file (compatible format supported by Paint 3D)

Precautions

• Ensure your 3D model is properly scaled before exporting
• Check that the model is fully loaded before saving
• Avoid extremely complex models that may slow down rendering

If Paint 3D is unavailable on your system, follow official machine specifications or instructions.

Step-by-Step Tutorial

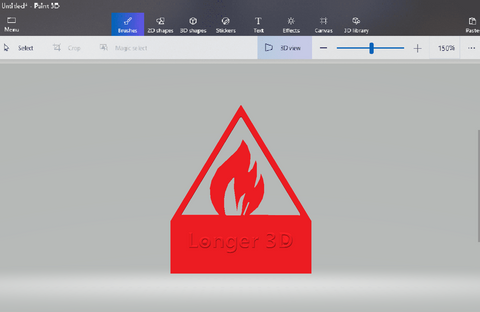

Step 1: Open Paint 3D and Import Your Model

• Action: Open Paint 3D software preinstalled in Windows 10. Then select Open and import your 3D file.
• Expected Result: Your 3D model appears in the workspace and is ready for editing.
• Important Notes: Ensure the file format is supported; otherwise, the model may not load correctly.

Step 2: Load the 3D Model into the Workspace

• Action: Select the option to open the 3D file and wait for it to fully load.
• Expected Result: The model becomes interactive, allowing rotation and viewing from different angles.
• Important Notes: Large models may take longer to load; do not close the software during processing.

Step 3: Adjust Angle & Framing (Optional)

• Action: Press “Adjust Angle & Framing” if you want to modify the viewing angle.
• Expected Result: The camera view changes, letting you select the best perspective for your image.
• Important Notes: Choose an angle that best represents the model for engraving clarity.

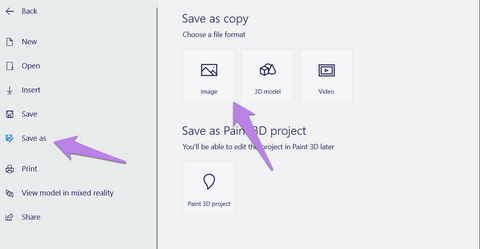

Step 4: Save as Image

• Action: Go to Menu → Save as → Image.
• Expected Result: A save dialog appears allowing you to choose image format options.
• Important Notes: This step converts your 3D view into a 2D snapshot.

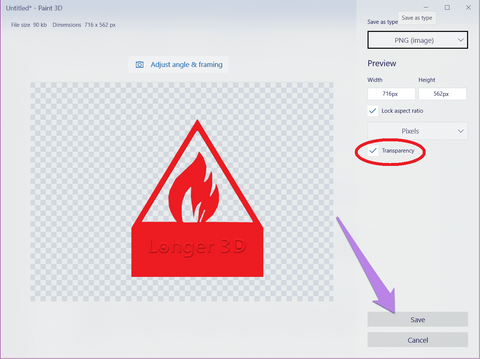

Step 5: Enable Transparency and Export PNG

• Action: Enable the checkbox for Transparency, then save the file as a PNG image.
• Expected Result: A clean 2D image with a transparent background is generated.
• Important Notes: Transparency is critical for laser engraving workflows.

Step 6: Use the 2D Image in Laser Software

• Action: Import the exported PNG into software like LaserGRBL or LightBurn.
• Expected Result: The image is ready to be converted into G-code for engraving.
• Important Notes: Ensure contrast is strong enough for engraving visibility.

Common Problems and Solutions

Tips for Better Results

• Choose a clear and simple viewing angle for engraving clarity
• Use high-contrast models to improve laser visibility
• Avoid overly complex geometry when possible
• Always preview the image before exporting
• Test engraving on scrap material first

These small adjustments significantly improve final engraving quality.

Frequently Asked Questions

Q: What does transform 3D model into 2D image mean?

A: It means rendering a 3D object into a flat image (like PNG) that can be used in 2D software such as laser engraving tools.

Q: Can I use any 3D file format?

A: Only formats supported by Paint 3D can be used. If a file fails to load, convert it first.

Q: Why do I need a transparent background?

A: Transparency ensures clean engraving paths without unwanted background artifacts.

Q: Can I change the angle after exporting?

A: No. You must adjust the angle before saving the image.

Q: What software can use the exported image?

A: LaserGRBL, LightBurn, and similar laser engraving programs support PNG files.

Q: Is Paint 3D required?

A: Yes for this method. Otherwise, follow official machine specifications or instructions for alternative workflows.

Q: Can I batch convert multiple models?

A: Paint 3D does not support batch exporting. Each model must be processed individually.

Final Thoughts

Converting a 3D model into a flat image is a simple but powerful workflow for laser engraving users. By using Paint 3D’s built-in export tools, you can quickly transform 3D model into 2D image files without complex software.

This method is ideal for beginners and ensures compatibility with most engraving platforms like LightBurn and LaserGRBL. For more advanced workflows, explore additional tutorials on model optimization and engraving calibration.
