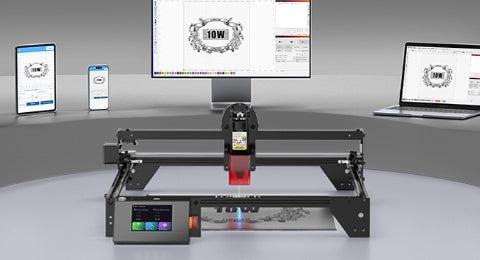

If the X-axis or Y-axis motor on your Ray5 laser engraver is moving in the opposite direction than expected, it can lead to incorrect positioning, failed engraving, or even machine errors.
Motor direction is controlled by both hardware wiring and software/firmware signals. To fix a reversed motor, you only need to adjust one of these elements so that they match correctly.
This guide provides three effective methods to correct motor direction, from the easiest (software) to the most advanced (hardware).
Core Principle
Motor rotation direction is determined by:
Motor wiring sequence → Physical wiring defines the default rotation
Direction control signal → Software/firmware instructs the driver on movement direction
To fix a reversed motor, you align the control signal with the wiring direction.
If software settings are insufficient, modify firmware parameters directly.
Using G-code commands (via LightBurn or LaserGRBL):
Connect the machine to your computer
Open the Console / Terminal window
Use the following GRBL parameter:
$3 – Direction invert setting
How it works:
Each axis direction is controlled by a binary value
Setting the parameter to true inverts direction
Examples:
Reverse X-axis → set X direction invert to true
Reverse Y-axis → set Y direction invert to true
⚠️ Tip: If the motor is reversed, simply toggle the setting (true/false) until the direction is correct.
Save the changes
Test using jog controls
Step 3: Hardware Adjustment (Physical Solution)
If software and firmware adjustments do not resolve the issue:
Reversing Motor Wiring
Power off the machine completely
Locate the motor cable of the reversed axis
Swap any one pair of wires:
A+ ↔ A−
or B+ ↔ B−
This will physically reverse the motor rotation direction.
Reconnect and power on the machine
Test the axis movement
Important Notes
Always try software settings first before modifying hardware
Ensure the machine is powered off before any wiring changes
Avoid changing both software and hardware simultaneously—adjust one at a time
Conclusion
Motor reversal on the Ray5 is a common but easily fixable issue. In most cases, it can be resolved through simple software configuration changes. For persistent cases, firmware or hardware adjustments provide a reliable solution.
By following the steps outlined above, you can quickly restore correct axis movement and ensure accurate engraving performance.

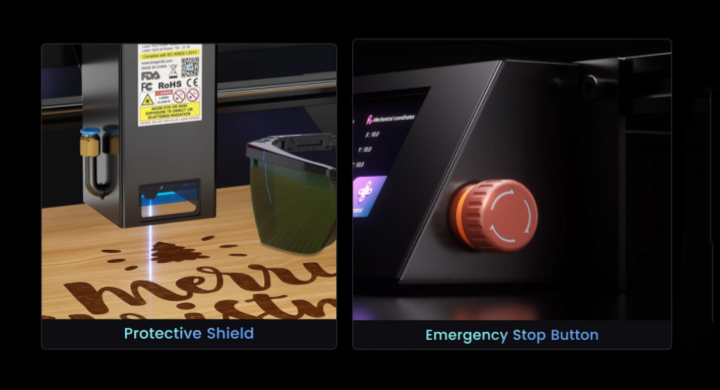

Movement Protection Triggered on Ray5 10W and Ray5 5W
The flame sensor and motion sensor are important safety features designed to protect your engraving process. However, they can sometimes be triggered unintentionally due to environmental factors, incorrect settings, or hardware issues. This guide will help you identify and resolve common alarm problems.
Flame Sensor Alarm
The flame sensor can be easily triggered. When it is activated, the LightBurn console will display Alarm 3. This can happen for several reasons, including ignition during use, strong light exposure, incorrect settings, short circuits, or even sensor damage.
To avoid unnecessary alarms, it is important to maintain a proper working environment. Avoid open flames during engraving. If an open flame occurs, reduce the laser power immediately to prevent triggering the sensor.
Environmental lighting also plays a role. The engraving machine should be placed in a normal indoor environment and kept away from strong light sources such as flashlights or direct sunlight, as these can interfere with the sensor.
If the flame sensor is still triggering, you can adjust its sensitivity. Open LightBurn or LaserGrbl, connect your machine via USB, and enter the following command in the control panel:
$42=1300
This command lowers the flame sensor trigger threshold. If the issue continues, you can further reduce the value until the sensor behaves normally.
In some cases, the issue may be caused by a hardware contact. If the flame sensor is triggered at the beginning of engraving, check whether the sensor’s metal pins are touching the metal casing. The flame sensor is a black cylindrical probe located at the back of the RAY5 control box. Carefully adjust its position to prevent contact.
If necessary, you can temporarily disable the flame sensor by entering:
$38=0
To enable it again, use:
$38=1
Motion Sensor Alarm
The motion sensor is designed to detect unexpected movement during operation. However, it may also trigger due to machine instability, incorrect settings, or sensor issues.
Make sure your engraving machine is placed on a stable and level surface. Any vibration or movement during operation can cause the motion sensor to activate.
If the sensor is too sensitive, you can adjust its trigger threshold through software. Open LightBurn or LaserGrbl, connect your machine via USB, and enter the following commands:
$40=200 $41=40
These commands reduce the sensitivity of the motion sensor and help prevent false alarms.
If the motion sensor continues to trigger at the start of engraving, it may indicate a hardware issue. In this case, you can disable the motion sensor by entering:
$39=0
To turn it back on, simply send:
$39=1
Conclusion
Flame sensor and motion sensor alarms are usually caused by environmental interference, overly sensitive settings, or hardware-related issues. Most problems can be resolved by adjusting settings, improving the working environment, or checking hardware connections.
By following the steps above, you can quickly restore stable operation and ensure safe and reliable engraving performance.

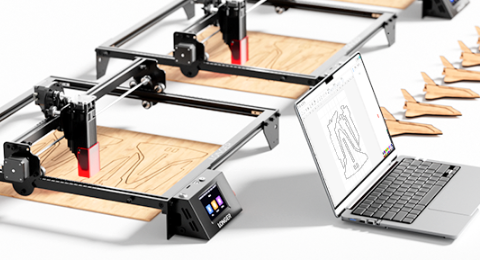

If your laser engraving machine stops unexpectedly during operation, the issue is often related to software, connection, electrical, or hardware factors. This guide covers the most common problems and practical laser engraver troubleshooting steps to help you quickly identify and fix the issue.
I. Software and Connection Issues (Most Common)
1. Data Transmission Interruption (USB Cable Issues)
Cause: This is one of the most common reasons for a laser engraving machine stopping mid-job. Poor-quality USB cables, loose connections, long cables, or signal interference can interrupt data transmission.
Troubleshooting:
Reconnect both ends of the USB cable (computer and engraver)
Use a high-quality, shielded USB cable and keep it as short as possible
Keep the USB cable away from power cables and motor wires to reduce interference
If using a network connection, ensure stable network performance
2. Computer or Software Issues
Cause: Low system performance, software freezing, or conflicts with other programs can interrupt LightBurn or LaserGRBL jobs.
Troubleshooting:
Restart the software and computer
Check power settings to ensure the system is not in “Power Saver” mode
Reduce data output speed in your engraving software (e.g., LightBurn). If the output frequency is too high (above 20 kHz), lower it to improve stability
Open Task Manager to monitor CPU and memory usage during operation
3. File or Design Issues
Cause: Overly complex designs, excessive nodes, or corrupted G-code files can cause engraving to stop.
Troubleshooting:
Optimize your design using vector tools like “Combine” or “Simplify Path”
Remove stray points or unnecessary details in the design file
Re-export or regenerate the G-code file
II. Electrical and Hardware Issues
1. Power Supply Problems
Cause: An unstable or insufficient power supply can cause laser engraver interruptions or resets.
Troubleshooting:
Ensure all power plugs are securely connected
Verify the voltage switch (110V / 220V) is set correctly
Avoid sharing a power source with high-power appliances that may cause voltage drops
2. Overheat Protection
Cause: Overheating of the laser module, motor drivers, or mainboard may trigger automatic shutdown for safety.
Troubleshooting:
Check that all cooling fans are functioning properly
Ensure proper ventilation in your workspace
Avoid high ambient temperatures during operation
3. Motor Stall or Step Loss
Cause: If movement is blocked or the load is too heavy, the motor may lose steps and trigger an emergency stop.
Troubleshooting:
Check belt tension and guide rail condition
Clean and lubricate the rails regularly
Remove any obstacles blocking movement
Reduce motor acceleration settings in your engraving software for smoother motion
4. Limit Switch False Trigger
Cause: A false trigger from the limit switch can cause the machine to stop or reset unexpectedly.
Troubleshooting:
Check if the limit switch lever is loose or misaligned
Inspect wiring for damage or short circuits
Manually move the laser head to check for premature triggering
III. Control Board and Firmware Issues
1. Control Board Malfunction
Cause: A malfunctioning control board may be due to aging components, electrical damage, or static interference.
Troubleshooting:
Observe indicator lights on the control board for abnormal behavior
Restart the machine to reset the system
Update or refresh the firmware if possible
Conclusion
When your laser engraving machine stops during operation, the issue is usually caused by one of the following:
USB connection or data transmission issues
Software or file-related problems
Power supply instability
Hardware issues such as overheating or motor stall
Control board or firmware errors
By systematically following these laser engraver troubleshooting steps, you can quickly identify the root cause and restore stable operation.
Check whether your computer has the necessary drivers installed and configured correctly. If not, download and install the drivers compatible with your Longer device.
Follow these steps to confirm whether the drivers are successfully installed on your computer:
1、Check the CH340 Driver
A. The required driver may be missing or not installed correctly. B. For macOS 10.15 or later, the CH340 driver does not need to be installed. C. Download the following driver installation package:
1. Follow the installation instructions to ensure the driver is installed successfully.
If any error messages appear during installation, contact Longer technical support.
1. Check if the driver was installed successfully in Device Manager:
2. Right-click on the desktop and select “Manage.”
Choose “Device Manager,” click on Ports (COM & LPT), and look for a COM port named CH340. If it appears, it means your device has been successfully recognized by the computer.
3、For macOS:
1. Connect the machine to your computer using the USB cable provided.
3. Follow the installation instructions to ensure the driver is installed successfully. If any error messages appear during installation, contact Longer technical support.
4. Restart your computer, then go to System Preferences → Security & Privacy → General → Allow.
5. Allow the CH340 driver to load. You may need to restart your computer again during this process. Follow the on-screen instructions.
6. Reconnect the device; at this point, LaserBurn, LightBurn, or LaserGRBL should be able to detect your machine.
If the “Allow” button does not work, continue reading for troubleshooting solutions
1. Open the Terminal using the following path: Go → Utilities → Terminal.
2. Copy and paste the following command into the Terminal:
sudo kextload /Library/Extensions/usbserial.kext/
1. Press Enter (if prompted for a password, enter your computer user password and press Enter again).
2. Once the command executes successfully, the Terminal will display a confirmation message like the one below.
Ray5 Safety Features: Dual Protection with Tilt Alarm and Flame Alarm
Laser engraving and cutting have revolutionized the way creators and small businesses produce custom designs, signage, and intricate artwork. However, working with a laser cutter and engraver involves high-powered lasers, moving components, and heat, all of which can pose potential risks if safety is not properly managed. The Longer Ray5 series of desktop laser engraving machines addresses these challenges with an integrated safety system that protects operators, materials, and the workspace while maintaining high precision and workflow efficiency.
Tilt and Flame Alarms: The Core Safety Features
At the heart of the Longer Ray5’s safety design are two critical systems: the tilt alarm and the flame alarm.
The tilt alarm ensures that the machine remains level during operation. Even a slight tilt can result in misaligned engraving, unexpected platform movement, or tipping hazards. The Ray5’s high-precision tilt sensor continuously monitors the device’s angle. If the tilt exceeds a preset safe limit, the system immediately shuts off the laser and halts platform motion. This intervention prevents accidents, protects the operator, and safeguards the material.
The flame alarm protects against fire risks generated by the laser’s focused heat. Engraving materials such as wood, plastics, or leather can ignite if exposed to intense heat. The Ray5’s flame detection system accurately monitors the engraving area in real time. If a flame is detected, the system instantly stops the laser and pauses platform movement, preventing escalation and maintaining a safe working environment.
Integrated Protections for Comprehensive Safety
Beyond tilt and flame detection, the Longer Ray5 incorporates multiple protective mechanisms that work together seamlessly. The machine comes with a protective cover and safety glasses, shielding the operator from direct laser exposure. Built-in sensors monitor abnormal shaking or instability, and the suspension program automatically halts operation if any irregular movement is detected. Platform motion is continuously controlled to avoid sudden jerks or collisions that could compromise engraving quality or machine integrity. Additionally, the system can detect improper material placement or thickness to prevent errors or unsafe conditions during operation.
Together, these protections ensure that the operator can focus entirely on creative and precise engraving without worrying about potential hazards. Whether you are using a portable laser cutter and engraver at home or a desktop laser engraving machine in a studio, Ray5 provides reliable and professional results with comprehensive safety.
Why Dual Safety Features Matter
The combination of tilt detection and flame monitoring creates a layered safety system that addresses multiple risk factors simultaneously. This dual protection:
Enhances operator safety by preventing laser exposure or platform-related accidents.
Reduces material damage by avoiding fires or misaligned engraving.
Maintains operational stability and workflow consistency, even during complex or prolonged projects.
Provides peace of mind for creators, allowing them to focus on design and production rather than constant safety monitoring.
Conclusion
The Longer Ray5 series sets a new benchmark for safety in desktop laser engraving and portable laser cutter and engraver devices. By combining tilt and flame detection with integrated protective mechanisms, it ensures that every engraving session is safe, stable, and precise. For hobbyists, small business owners, and educational users alike, Ray5 offers a reliable, high-performance solution that balances creativity, efficiency, and operator protection.
To learn more about the Longer Ray5 safety features or to connect with other laser engraving enthusiasts, join our official Facebook community, where users share experiences, tips, and best practices for maximizing the potential of their Ray5 safely and efficiently.
Please make sure your computer has the required drivers properly installed and configured. If not, download and install the appropriate driver for your Longer device.
Follow the steps below to confirm whether the driver has been successfully installed on your computer:
1) Check the CH340 Driver
A. The required driver for connection may be missing or not installed correctly. B. For macOS 10.15 or later, installation of the CH340 driver may not be necessary. C. Download the driver installation package below:
Keeping your Longer Ray5 desktop laser engraver up to date with the latest firmware is essential for maintaining peak performance, improving stability, and unlocking new features. Firmware updates can fix bugs, enhance device functionality, and ensure compatibility with the latest software and materials. For creators, small businesses, and educators using the Ray5 as a portable laser cutter and engraver, staying on the latest firmware means more reliable engraving sessions and optimized production.
Why Firmware Updates Matter
Firmware is the internal software that controls every aspect of your Ray5’s operation—from laser power and motion control to platform calibration and safety features. An outdated firmware version may limit performance, introduce errors, or cause unexpected behavior during engraving or cutting tasks. By keeping the Ray5 firmware current, users benefit from:
Improved motion control for precise engraving and cutting.
Enhanced safety features, including tilt and flame detection responsiveness.
Optimized communication with desktop software for smoother workflow.
Compatibility with new materials and advanced engraving techniques.
Regular updates ensure that your laser cutter and engraver remain reliable, safe, and capable of achieving professional-quality results.

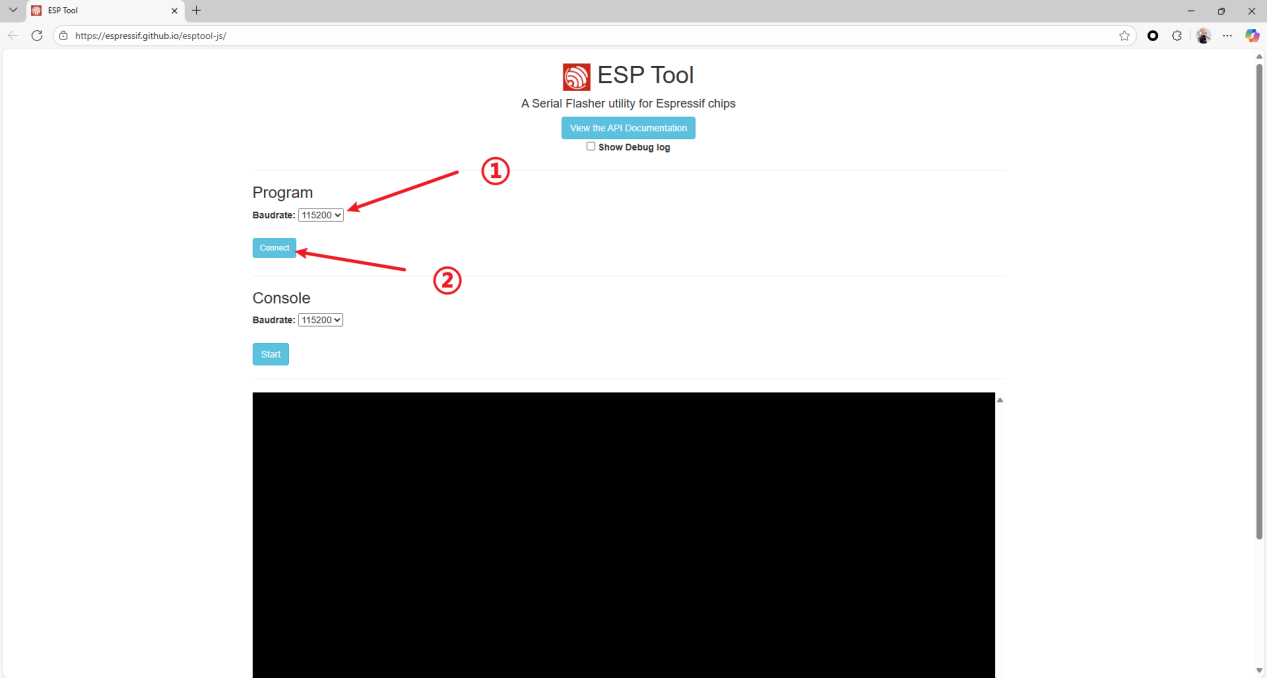

Step-by-Step Guide: Updating via ESPTool Web
The ESPTool Web method allows users to update the Ray5 firmware online through a web browser and serial connection. Follow these steps carefully:
Open your browser and navigate to https://espressif.github.io/esptool-js/ . This interface connects to your Ray5 via the serial port and allows online firmware flashing.
Select the baud rate 115200 and connect to the CH340 serial port, which is recognized by your computer when the Ray5 is plugged in.
Click “Erase Flash” to clear the existing firmware and prepare the device for the new version.
Enter the Flash address 0x0 and select the firmware file you want to upload. Ensure that the firmware corresponds specifically to your Ray5 model to avoid compatibility issues.
Click “Program” to begin the firmware upload. The process may take a few minutes; do not disconnect the device or turn off the power during this step.
Once the upload completes, restart your Ray5 and verify that all functions, including engraving, cutting, and safety features, operate correctly.
Tips for a Safe and Successful Firmware Update
Updating firmware is straightforward, but taking precautions ensures success and prevents device issues:
Always use a stable USB connection and power source to avoid interruptions.
Close other programs that might interfere with the serial connection during flashing.
Backup any critical settings or calibration data before performing the update.
Verify the firmware version before uploading to ensure it matches your Ray5 model.
By following these guidelines, your Longer Ray5 portable laser cutter and engraver can be safely updated, unlocking the full potential of your machine while preserving reliability and safety.
Conclusion
Keeping your Longer Ray5 desktop laser engraver firmware up to date is not just about accessing new features—it is about maintaining precision, safety, and efficiency in every engraving and cutting task. Regular updates ensure your machine remains compatible with the latest software, delivers consistent high-quality results, and keeps the advanced safety mechanisms fully functional. Whether you are running a small workshop, a hobby studio, or an educational lab, following proper firmware update procedures guarantees your Ray5 performs at its best.
For additional support, tips, or to connect with other Ray5 users, join the official Facebook community. Share experiences, ask questions, and discover best practices from creators who maximize the potential of their Longer Ray5 laser cutter and engraver safely and effectively.
Focusing is one of the most critical steps in laser engraving and cutting, directly affecting precision, material quality, and the lifespan of your laser module. Whether you are using the Ray5 5W or 10W laser machine, the focusing procedure varies slightly depending on whether you have the older or newer model. This technical guide will walk you through step-by-step focusing procedures, along with professional tips to achieve optimal results.
Why Proper Focusing Matters
The laser’s focal point determines the size and shape of the beam, which in turn affects engraving detail and cutting efficiency. Improper focus can lead to:
Blurry or uneven engraving lines
Inconsistent cutting depth
Material burn or incomplete cuts
Accelerated wear on the laser module
Proper focusing ensures that thelaser beam is concentrated, producing the smallest spot size, leading to cleaner cuts and finer engraving details.

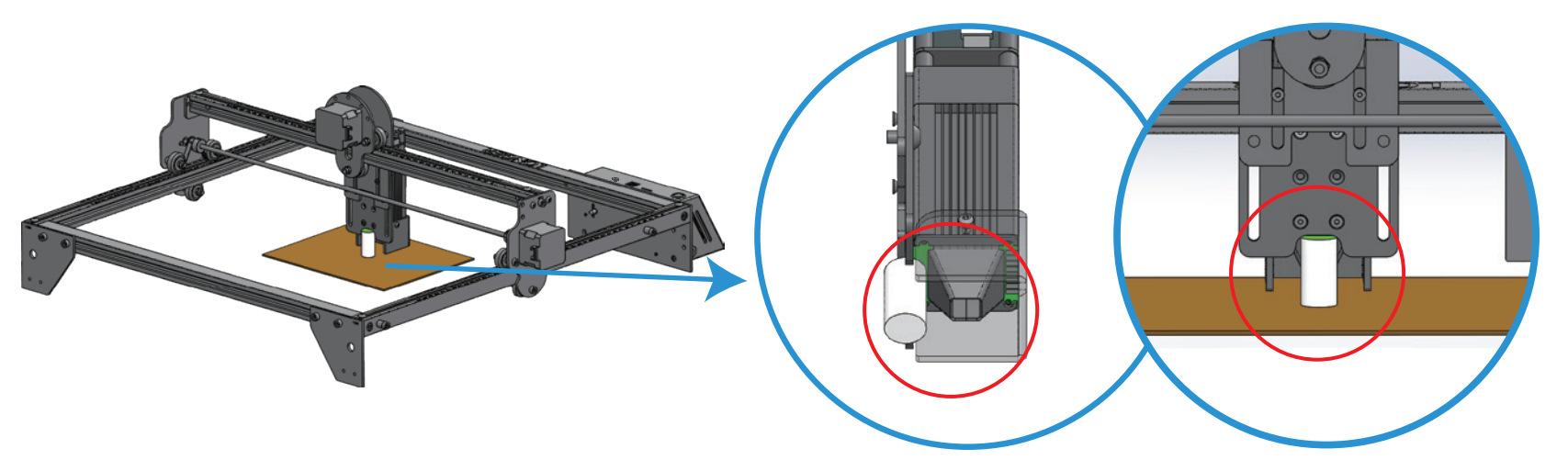

1. Focusing the Older Ray5 5W/10W Models
Materials Needed:
The actual object or material you want to engrave (e.g., wood, acrylic, or other substrates)
Focusing column
Laser head adjustment plate
Step-by-Step Procedure:
Place the engraving object directly under the laser head.
Loosen the thumbscrew on the laser head.
Loosen the laser head adjustment plate.
Position the focusing column beneath the laser profile so the beam passes through it.
Adjust the laser head until the end face of the laser aligns perfectly with the focusing column.
Tighten the thumbscrew to secure the head in place.
Pro Tip: Using the actual engraving material for focusing ensures the beam is correctly aligned with the substrate, giving the best possible results.
2. Focusing the Newer Ray5 5W/10W Models
Newer Ray5 models feature a modular design, making focus adjustment more intuitive:
Materials Needed:
The object you intend to engrave
Focus plate (compatible with 5W or 10W laser modules)
Step-by-Step Procedure:
Place the object directly under the laser module.
Loosen the 7-shaped hand screw.
Move the laser module up or down until the end face of the module aligns perfectly with the focus plate.
Secure the module by tightening the hand screw once the correct focus is achieved.
Professional Tip: Make sure to select the correct side of the focus plate according to your laser module’s power (5W or 10W) to achieve precise engraving.
3. Advanced Focusing Tips
Use the Actual Material: Focusing on the material you plan to engrave ensures accuracy and prevents discrepancies.
Fine-Tune for Material Thickness: Even the same laser module may require minor adjustments based on substrate thickness or density.
Check Focus Regularly: Always recheck focus after changing materials or moving the laser head.
Secure Without Over-Tightening: Tighten screws just enough to hold the module firmly without putting excessive stress on the assembly.
Conclusion
Accurate focusing is the cornerstone of high-quality laser engraving and cutting with the Ray5 5W/10W, as it directly impacts the precision of your designs, the consistency of your cuts, and the overall longevity of your laser module. By carefully following the correct focusing procedures—whether on an older or newer model—you ensure that each project achieves sharp, detailed engraving and smooth, reliable cuts while minimizing unnecessary wear on your equipment. Taking the extra step to test the focus on a corner or a scrap piece of your material before starting the main project not only prevents material waste but also allows you to fine-tune the focus for different substrates, ensuring optimal results every time. With proper attention to focusing, your Ray5 machine can consistently deliver professional-level performance, whether you are producing intricate designs or precise cuts for functional projects.

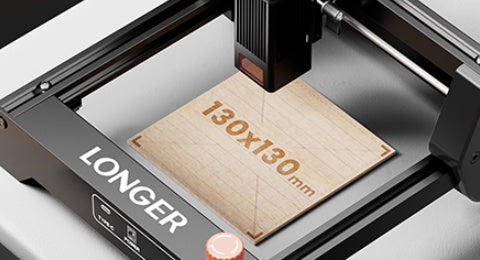

The timing belt is a key component responsible for transmitting motion between the motor and the X/Y axes. Over time, belts can wear out, loosen, or break, leading to issues such as inaccurate positioning, skipped steps, or uneven engraving.
Replacing the timing belt ensures smooth motion, precise alignment, and consistent engraving quality on your Ray5 mini/miniS.
1. Remove the Laser Module
Disconnect the laser cable
Loosen the M3×14 screws or L-shaped hand screws
Remove the laser module
Ray5 mini/miniS 2.5/3.5W
Ray5 mini/miniS 5.5/10W
2. Remove the Top Cover (Ray5 miniS only)
Remove the top acrylic cover
Unscrew 12 screws to access internal components
Top acrylic cover
3. Remove the Slider Components
Use a 2mm hex wrench to loosen the four screws
Remove:
Slider plastic part (mini)
Metal slider with plastic part (miniS)
Ray5 mini/miniS 2.5/3.5W
Ray5 mini/miniS 5.5/10W
4. Remove the Timing Belt
Use a hex wrench to loosen the screws securing both axes:
X-axis: 2 screws
Y-axis: 4 screws (2 front + 2 rear)
Carefully remove the timing belt
⚠️ Important:
Do not miss the T-slot screws that secure the belt
5. Install the New Timing Belt
Thread the new belt through the pulleys and connecting shaft in order
Ensure the belt is properly seated on the shaft
💡 Tip:
Use a screwdriver to guide the belt
Slightly move pulleys left and right to help the belt pass smoothly
6. Tension and Secure the Belt
Insert one T-slot screw into the profile along the X-axis
Press the belt onto the screw and tighten it
Pull the belt tight on the opposite side
Insert the second T-slot screw and tighten
Check after installation:
The belt should have proper elasticity
Pulleys should move smoothly without sticking
7. Reinstall Components
Reinstall the slider and plastic parts
For Ray5 miniS, reinstall the top acrylic cover
Mini：
MiniS：
Conclusion
Replacing the timing belt on the Ray5 mini/miniS is essential for maintaining precise motion control and high engraving accuracy. Proper installation ensures smooth operation, reduces mechanical errors, and extends the lifespan of the machine.
Regular inspection and timely replacement of the timing belt will help maintain consistent performance and reliable engraving results.

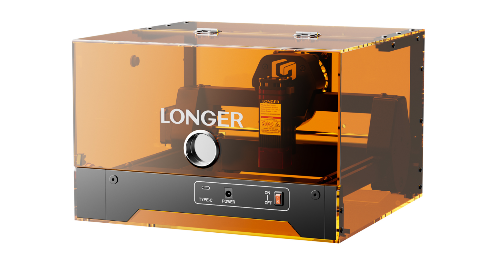

During engraving, the Ray5 MiniS may trigger errors or alarms related to limit switches or motion control. These alarms are typically caused by operational actions, software settings, or homing issues rather than hardware failure.
This guide explains the most common causes and how to resolve them step by step.
Table of Contents
What This Guide Covers
Quick Answer
Why This Process Matters
Before You Start
Requirements
Precautions
Step-by-Step Tutorial
Step 1: Prevent Limit Triggering During Engraving
Step 2: Understand Stop Button Error Reporting
Step 3: Fix Overscan and Soft Limit Errors
Step 4: Resolve Zeroing Abnormalities
Common Problems and Solutions
Tips for Better Results
Frequently Asked Questions
Final Thoughts
What This Guide Covers
This tutorial explains how to troubleshoot common engraving errors and alarms on the LONGER Ray5 MiniS laser engraver.
You will learn how to:
Prevent limit trigger alarms
Understand normal alarm behavior after stopping engraving
Fix overscan-related soft limit errors
Adjust coordinate settings properly
Resolve homing and zeroing abnormalities
Improve engraving stability and workflow reliability
The procedures below follow the original operating sequence and troubleshooting methods provided for the Ray5 MiniS.
Quick Answer
If your Ray5 MiniS displays engraving alarms or motion control errors:
Do not manually move the laser during engraving
Alarm reporting after pressing Stop is normal
Change coordinates to absolute coordinates if overscan triggers soft limits
Reduce the pattern size and place it in the middle if needed
Turn off the overscan function when necessary
Confirm the XY axis does not continue pressing the limit switch after zeroing
Most Ray5 MiniS engraving errors are caused by software settings or operation behavior rather than defective hardware.
Why This Process Matters
Laser engravers rely on accurate positioning and coordinated movement to complete engraving tasks safely and precisely. When the Ray5 MiniS detects unexpected movement, excessive travel range, or abnormal limit switch signals, it may stop the engraving process and report an alarm.
Understanding these alarms is important because it helps:
Prevent interrupted engraving jobs
Protect the machine from positioning errors
Improve engraving consistency
Reduce material waste
Avoid repeated homing failures
Maintain accurate motion control
Many beginners assume that engraving alarms indicate hardware damage. In most cases, the issue is related to machine operation, coordinate setup, or overscan configuration.
Before You Start
Requirements
Before troubleshooting Ray5 MiniS engraving errors, prepare the following:
LONGER Ray5 MiniS laser engraver
Connected engraving software
Properly powered machine
Stable working surface
Correctly installed limit switches
Engraving design file for testing
Follow official machine specifications or instructions.
Precautions
Before performing troubleshooting procedures, keep these precautions in mind:
Do not manually force the laser module during engraving
Keep hands away from moving parts
Monitor the engraving process continuously
Verify coordinate settings before engraving
Ensure the machine frame moves smoothly
Avoid interrupting engraving unnecessarily
Incorrect movement or positioning may trigger unnecessary alarms and stop the engraving process.
Step-by-Step Tutorial
Step 1: Prevent Limit Triggering During Engraving
Original Step
Manually moving the laser position during engraving causes limit triggering.
Action
Do not manually move the laser position while engraving is active.
Expected Result
The engraving process should continue normally without triggering a limit alarm.
Important Notes
The Ray5 MiniS continuously tracks the laser head position during operation. If the laser module is manually pushed or repositioned while engraving, the controller may detect abnormal movement and trigger a limit alarm.
This issue commonly occurs when users attempt to adjust material positioning during engraving.
If the machine reports a limit error:
Stop the engraving process
Reposition the laser correctly
Restart the engraving job if necessary
Avoid touching the laser assembly during operation.
Step 2: Understand Stop Button Error Reporting
Original Step
When you click Stop during engraving, this error will be reported, which is normal.
Action
If you press the Stop button during engraving and an error appears, understand that this behavior is expected.
Expected Result
The engraving stops immediately and the system reports an alarm or error message.
Important Notes
This is normal machine behavior rather than a hardware malfunction.
When engraving is interrupted manually, the controller detects the interruption and reports the stop condition as an error or alarm.
After stopping:
Clear the alarm if required
Reset the engraving position if necessary
Restart the engraving task
If alarms continue after restarting, verify the coordinate settings and engraving area configuration.
Step 3: Fix Overscan and Soft Limit Errors
Original Step
When engraving an image or vector filling at the current position, if the overscan function is turned on, the soft limit may be triggered, and the engraving may not be possible. You need to change the coordinates to absolute coordinates. If you do not change the coordinate system, then reduce the pattern and put it in the middle, or turn off the overscan function.
Action
Adjust the coordinate system or overscan settings when soft limit alarms occur during image engraving or vector filling.
Expected Result
The engraving process should complete without triggering soft limit errors.
Important Notes
This is one of the most common Ray5 MiniS engraving problems in engraving software.
Overscan allows smoother acceleration and deceleration by extending movement slightly beyond the engraving boundary. However, when the design is placed too close to the machine edge, overscan movement may exceed the available work area and trigger a soft limit alarm.
Follow the original troubleshooting sequence exactly:
Change the coordinates to absolute coordinates
If the coordinate system is not changed, reduce the pattern
Put the pattern in the middle
Turn off the overscan function if necessary
Do not modify additional machine parameters unless instructed in official documentation.
Follow official machine specifications or instructions.
Step 4: Resolve Zeroing Abnormalities
Original Step
The machine continuously detects the signal of the limit switch, resulting in a zeroing abnormality. The solution is to confirm that the XY axis does not hit the limit switch after the XY axis completes zeroing.
Action
Check the XY axis position after zeroing completes.
Expected Result
The machine should complete homing normally without repeatedly triggering the limit switch.
Important Notes
This issue occurs when the controller continues receiving a limit switch signal after the homing process finishes.
Possible causes include:
The XY axis remaining pressed against the limit switch
Mechanical obstruction
Incorrect positioning after homing
Axis movement restriction
Carefully inspect the machine after zeroing completes.
Verify that:
The XY axis moves away from the limit switch normally
The carriage is not stuck
The machine frame moves freely
No obstruction blocks axis movement
If homing abnormalities continue:
Restart the machine
Recheck the limit switch area
Confirm smooth axis movement
Avoid manually forcing the carriage while the machine is powered on.
Common Problems and Solutions
Problem
Possible Cause
Solution
Limit alarm during engraving
Laser moved manually
Do not move the laser during engraving
Error after pressing Stop
Normal interruption behavior
Restart engraving normally
Soft limit triggered
Overscan exceeds work area
Change to absolute coordinates
Engraving fails near machine edge
Pattern placement issue
Reduce the pattern and place it in the middle
Continuous homing abnormality
Limit switch signal remains active
Confirm XY axis leaves limit switch after zeroing
Repeated limit switch alarms
Axis still touching switch
Check carriage position after homing
Motion control error
Coordinate setup issue
Verify engraving coordinate settings
Vector fill engraving fails
Overscan enabled
Turn off the overscan function
Tips for Better Results
Position designs away from workspace edges
Use absolute coordinates for larger designs
Check overscan settings before vector filling
Test engraving boundaries before starting production jobs
Keep the machine frame clean and unobstructed
Monitor homing movement during startup
Avoid interrupting engraving unless necessary
Ensure cables and limit switches remain secure
Proper software configuration and operating practices can significantly reduce unnecessary engraving alarms.
Frequently Asked Questions
Why does my Ray5 MiniS trigger a soft limit alarm?
Soft limit alarms usually occur when overscan movement exceeds the machine’s available work area during engraving.
Is it normal to see an error after pressing Stop?
Yes. When Stop is clicked during engraving, the machine reports an error normally because the process was interrupted intentionally.
What is overscan in laser engraving?
Overscan extends movement slightly beyond the engraving area to improve motion smoothness during image engraving and vector filling.
Why does my machine fail during homing?
The controller may continuously detect the limit switch signal after zeroing. Confirm that the XY axis does not remain pressed against the limit switch.
Should I disable overscan completely?
You may turn off the overscan function if it causes soft limit alarms. Alternatively, reposition the design or change coordinates to absolute coordinates.
Can manual movement interrupt engraving accuracy?
Yes. Moving the laser manually during engraving can trigger alarms and affect positioning accuracy.
Does this mean my Ray5 MiniS hardware is damaged?
Usually not. Most engraving alarms are caused by operational actions, software settings, or coordinate configuration issues.
Final Thoughts
Engraving errors or alarms on the Ray5 MiniS are usually related to user operation, software configuration, or limit switch behavior. By following proper usage practices and adjusting settings such as coordinate systems and overscan, most issues can be quickly resolved.
Maintaining correct operation procedures and system calibration ensures stable engraving performance and reduces unnecessary error triggers.
