What Is an Engraving Scan Path?

The engraving scan path refers to the path settings that determine the order and method in which the laser module scans and engraves objects during processing.

Different scan path options will affect:

• Processing time
• Operation sequence

How Does It Work?

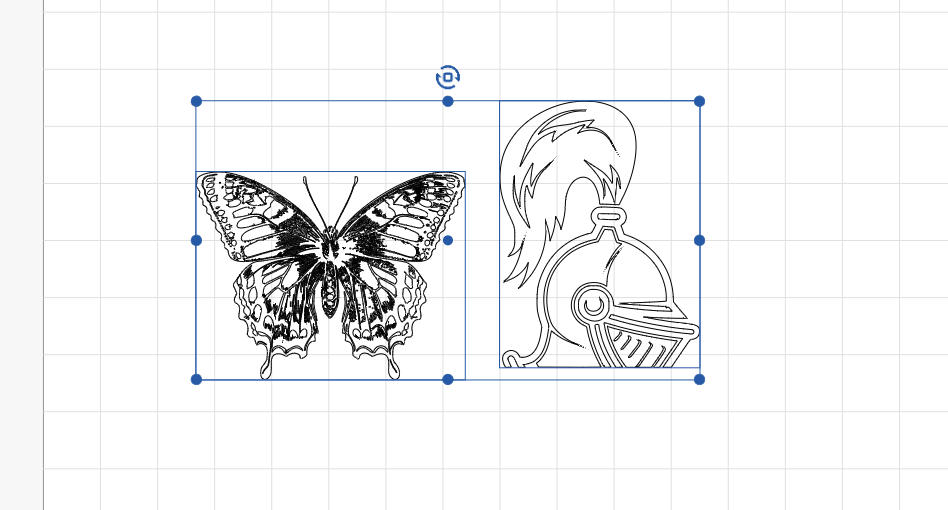

1. Whole Engraving (Single Layer Engraving)

All objects on the canvas are engraved at once without distinguishing priority or sequence.

For filled engraving objects with the same parameters:

• The laser scans from bottom to top and left to right
• The laser processes these areas sequentially within a single scan

As a result, the overall processing time is usually longer.

2. Object-by-Object Engraving (Multi-Layer Engraving)

Objects are engraved one by one according to the defined order and direction.

• The laser completes one object before moving to the next
• The movement distance between objects is shorter

As a result, the processing time is usually shorter.

3. How to Use It?

The scan path for objects with different parameters will be displayed accordingly.

Example:

(1) When engraving three filled objects on the current canvas:

• Objects with the same parameters will be grouped together
• A total of three groups will be generated (Group 1, Group 2, Group 3)
• Each group contains one object

What is “by layer"?

For complex vector graphics, using layers helps manage objects more efficiently. Vector line colors are used to define layers, and objects within the same layer share the same processing parameters.

You can easily select and move objects across layers, simplifying your design workflow.

After enabling “By Layer” in the processing settings, you only need to adjust the layer order to define the processing sequence of your design.

How Does It Work?

The processing order follows the vertical layer order, from top to bottom.

The order is not affected by layer numbering. To change the order, simply left-click and hold the layer you want to move, then drag it to your desired position.

How to Use It?

(1) Create Objects

Use the tools in the left toolbar to create objects. You can import images, insert shapes, input text, or draw vector graphics as needed.

(2) Assign Layers

Right-click the object you want to adjust, then select a layer.

(3) Arrange Layer Order

Click the layer icon at the bottom and arrange the layers as needed.
In this example, the circle is placed last, while the triangle and polygon are placed first.

(4) Preview

After completing all preprocessing steps, click the “Preview” button to enter the preview page.

On the preview page:

• Black lines represent the processing path
• The “+” icon represents the processing starting point

The machine will cut the circle first, then engrave the triangle and polygon vectors.

Tips for Better Results

• Always check the preview before processing
• Adjust layer order carefully to match your design needs
• Use consistent colors to manage layers more clearly

Longer laser engravers, such as the Longer Ray5 10W/20W Laser Engraver (the best laser engraver for beginners), the Longer Ray5 40W Laser, the Engraver Longer B1 30W/40W Laser Engraving Machine (the best laser engraver for small business), Longer Nano Pro Portable Laser Engraver ( The best laser engraver for craft fairs), allow you to create intricate works of art on a vast variety of materials. While wood is a common starting point, the versatility of these laser cutter and engraver machines extends dramatically to harder, more durable surfaces, like stone, offering a completely different aesthetic and final product.

Why Choose Stone for Laser Engraving

The material preferred by users for its natural elegance and striking contrast is usually dark slate, which can be engraved with high precision and is highly durable. Engraved slate is perfect for creating a sophisticated, timeless look, much more durable than most organic materials, particularly for items like coasters, plaques, and decorative tiles.

Cardboard can also be processed with a laser; however, great care must be taken, as it is easily flammable. In order to avoid this, it is essential to carefully set the power and speed parameters. Stone, on the other hand, presents no fire risk but requires precise parameter settings to achieve clear, sharp contrasts. The material’s density dictates a completely different approach compared to engraving wood or cardboard, focusing on achieving a bright, precise mark without fracturing the surface. The use of air assist is still highly recommended to remove fine stone dust and keep the workspace clean, allowing for faster and more accurate processing.

Getting Started: Basic Parameters for Slate

In initial tests on slate, it is good practice to start applying settings that allow for a clean, single-pass marking. This allows the laser to ablate a fine surface layer to expose a lighter shade, creating the detailed image. Supposing you want to engrave slate, the following can be considered as basic parameters, tested on a 12W Longer Nano Pro:

Speed: 6000 mm/min
Power: 50%
Steps: 1 pass

These parameters provide a fast yet efficient starting point for clear engravings. Note that different laser powers will require adjustments (e.g., using a 20W or 30W module, you may be able to significantly increase the speed or decrease the power and possibly proceed with the necessary adjustments, doing tests).

Achieving Striking Contrast and Longevity

In this way, the engravings will be carried out with striking contrast, where the dark slate reveals a light, detailed pattern. However, since the engraving is a physical removal of a surface layer, it is necessary to avoid touching the engraved areas with abrasive materials; otherwise, they will be removed and compromised. A practical solution is to apply a light, food-safe mineral oil or a clear matte coat so as to protect the result, deepen the black areas, and make the engraving more durable and permanent.

Creative Possibilities with Stone

An interesting aspect of engraving on stone is the possibility of playing with subtle variations, creating deep engravings or light surface markings. This makes stone an ideal material for experimenting with complex graphics, illustrations, or even stylized photographs, where the high resolution of Longer Laser Engravers shines. In addition, thanks to its durability, stone creations can be made for both indoor and outdoor use.

Stone engravings are used in various practical areas:

• Customization of kitchenware and personalized gifts
• Creation of stencils, architectural accents, and artistic plaques
• Commercial applications, such as high-quality branded items and detailed signs

Thanks to the precise power control, you can experiment freely until you get the desired result.

Maintenance Tips for Stone Engraving

After engraving, it is advisable to clean the countertop and laser module regularly, as stone tends to release fine, abrasive dust. A simple wipe with a damp microfiber cloth avoids accumulations that could compromise the precision of subsequent processing. The air assist filter should also be checked periodically to maintain constant airflow efficiency.

Why Stone is an Exceptional Laser Engraving Material

As far as we have seen, stone is not simply a hard material but an exceptional canvas with its own intrinsic strategic value. In fact, its convenience and easy availability (particularly slate), combined with the millimetric precision of Longer Laser Engravers, make it the ideal tool for efficiency and experimentation.

Ultimately, stone is a superb material to master using Longer Laser Engravers, since by mastering the parameters of speed and power, it is not only possible to obtain pieces with clean lines and high contrast, but it is also possible to have access to artistic creation that is sophisticated, permanent, and highly cost-effective.

Finding the right settings for laser engraving or cutting can be challenging, especially with different materials. LaserBurn makes this process easier with its built-in material library. By following a few simple steps, you can quickly generate the optimal parameters for your project.

1. Access the material library

In LaserBurn, click the “Unknown” button at the top-right corner of the interface.

2. Select Your Material and Confirm

• Choose the material you want to engrave or cut.
• Click Confirm to apply the selection.

3. Generate the Parameter Matrix

After confirming the material:

• Go to the Layer page.
• Select the layer you want to set parameters for.
• Click Parameter Matrix to view the matrix effect chart.
• Choose the effect that matches your desired result.

4. Apply the Parameters Automatically

Once you select the desired effect:

• LaserBurn will automatically fill the chosen parameters into the parameter input fields.
• No manual input is needed, saving time and reducing errors.

Conclusion

Introduction

This document summarizes the common causes and solutions for CH340 driver installation issues on both Windows and macOS systems. It explains how to resolve problems related to system compatibility, driver conflicts, permission restrictions, USB cable issues, and security settings. It also provides methods to verify whether the driver is installed correctly and suggests alternative solutions if installation continues to fail.

By following the troubleshooting steps in this guide, users can quickly diagnose driver installation problems and restore normal communication between their device and computer.

Windows System

Common Causes and Solutions

1. System Compatibility Issues

Windows 10 and Windows 11 usually include a built-in driver for the CH340 chip. However, automatic installation may occasionally fail.

Solution

Download and install the latest driver manually from the official website:
https://www.wch.cn

Install the latest version of the driver package CH341SER.EXE.

2. Old Driver Conflicts

If an older version of the CH340 driver was previously installed, it may conflict with the new installation.

Solution

1. Open Device Manager.

2. Click View → Show hidden devices.

3. Expand Ports (COM & LPT).

4. Right-click any CH340/CH341 related devices and uninstall them.

5. Select Delete the driver software for this device if prompted.

6. Reinstall the latest driver.

3. Driver Signature Issues

Some systems, especially Windows 7 and certain Windows 10 configurations, may block unsigned drivers.

Solution

1. Restart your computer.

2. Enter Advanced Startup Options.

3. Select Disable driver signature enforcement.

4. Run the driver installer again.

4. Insufficient Permissions

Installing drivers requires administrator privileges.

Solution

Right-click the installer and select Run as administrator.

5. USB Cable or Port Problems

Some USB cables only support charging and do not transfer data. If such a cable is used, the device will not be recognized even if the driver is installed.

Solution

• Use a USB cable that supports data transfer.

• Connect the cable directly to the computer’s USB port (preferably USB 2.0).

How to Confirm the Driver Installation

1. Connect the Longer laser engraver to your computer.

2. Open Device Manager.

Under Ports (COM & LPT) you should see something similar to:

USB-SERIAL CH340 (COM3)

If this appears, the driver has been installed successfully.

If a yellow warning icon appears, the driver installation may have failed or there may be a driver conflict.

Alternative Solutions

If the driver still cannot be installed:

• Try using another computer to rule out system-related issues.

• Replace the adapter module with FT232 or CP2102, which often offer better compatibility.

macOS System

1. Check Whether a Driver Is Needed

Starting from macOS 10.13, the CH340 chip may sometimes be recognized automatically without installing a driver.

1. Connect your Longer laser engraver.

2. Open Terminal and enter:

ls /dev/tty.*

If you see a device such as:

/dev/tty.wchusbserial1410

The device has been detected successfully and no driver installation is required.

2. Install the Driver (If the Device Is Not Recognized)

Download the Driver

Official driver
https://www.wch.cn/downloads/CH341SER_MAC_ZIP.html

Open-source driver (recommended)
https://github.com/adrianmihalko/ch340g-ch34g-ch34x-mac-os-x-driver

The open-source version often provides better compatibility with newer macOS systems.

Allow System Extensions

During installation, macOS may display a message such as “System Extension Blocked.”

To allow the driver:

1. Open System Settings / System Preferences.

2. Go to Security & Privacy.

3. Under the General tab, click Allow for WCH Electronics Co., Ltd.

Restart Your Computer

After installation, restart your Mac so the driver can be loaded correctly.

Troubleshooting Common Issues

Driver Installed but No Port Appears

Open Terminal and run:

ls /dev/tty.*

Disconnect and reconnect the USB cable to check whether a new device appears.

Apple Silicon Macs (M1 / M2 / M3)

Many official drivers were originally designed for Intel-based Macs, which may cause compatibility issues on Apple Silicon devices.

For better stability, we recommend using the open-source driver from GitHub mentioned above.

Permission Restrictions on New macOS Versions

Recent macOS versions such as Big Sur, Monterey, and Ventura enforce stricter security policies for third-party drivers.

If the Allow option does not appear in Security & Privacy, you may need to:

1. Restart your Mac in Recovery Mode.

2. Temporarily disable System Integrity Protection (SIP).

3. Install the driver again.

Alternative Options

If you still cannot install the CH340 driver, you may consider these alternatives:

• Use an FTDI USB-to-serial module, which macOS supports natively without additional drivers.

• Use a Wi-Fi connection if your GRBL controller board supports wireless communication.

Introduction

When connecting your device to the LaserBurn software via USB, connection failures may occasionally occur due to cable issues, driver conflicts, power management settings, or system compatibility problems.

This guide provides a structured, step-by-step troubleshooting process—starting from simple physical checks to advanced system diagnostics—to help you quickly identify the root cause and restore a stable USB connection.

Stage 1: Quick Check and Basic Troubleshooting

These steps are the simplest and most often overlooked, but they often resolve the issue.

1. Reseat the USB cable:

Unplug the USB cable, wait a few seconds, then reseat it, ensuring it is fully inserted.

Purpose: Eliminate a momentary poor contact or software handshake failure.

2. Try a different USB port:

Unplug the USB cable from the current computer port and try another one (for example, from the front panel to the back panel).

Purpose: Eliminate a single USB port failure or insufficient power.

3. Restart the device and computer:

Shut down and restart both the device and computer.

Purpose: Clears temporary system caches and driver errors, a universal solution for various esoteric issues.

4. Check the physical connection:

Check the USB cable for visible damage or bends.

Check the device's USB port for loose connections, foreign objects, or damage.

Purpose: Eliminate the most basic physical layer issues.

5. Check if the USB port is occupied.

Stage 2: Software and Driver Troubleshooting

If basic troubleshooting doesn't work, the problem may lie with the software or driver.

1. Check the Device Manager:

On Windows, right-click "This PC" -> "Manage" -> "Device Manager."

Check for devices with a yellow exclamation mark (!) or question mark (?), especially under "Universal Serial Bus controllers" and "Other devices."

Action: If you see an unknown device or your device with an exclamation mark, right-click it and select "Update driver" -> "Search automatically for driver." If that doesn't work, try "Uninstall device" and then restart your computer to allow the system to automatically re-identify and install the driver.

2. Disable the USB selective suspend setting:

This is a power-saving feature that can sometimes cause unstable connections.

Path: Control Panel -> Hardware and Sound -> Power Options -> Change plan settings -> Change advanced power settings -> Find "USB settings" -> "USB selective suspend setting" -> Set it to "Disabled."

3. Check power management:

In Device Manager, expand Universal Serial Bus controllers, right-click each USB root hub, select Properties -> Power Management, and uncheck "Allow the computer to turn off this device to save power." Repeat this step for all USB root hubs.

Stage 3: In-depth hardware and system troubleshooting

If all of the above steps fail, you may need to consider more complex issues.

1. Replace the USB cable:

This is a very common problem! Many USB cables only charge, not transfer data. Be sure to use the original cable that came with your device or a high-quality USB cable that's proven to transfer data properly.

2. Test on another computer:

Connect your device to another working computer.

Result Interpretation:

If it works on the other computer: The problem lies with your original computer (driver, system, hardware port).

If it doesn't work on the other computer: The problem is most likely with your device or the USB cable.

3. Check the system log (Windows):

Right-click "This PC" -> "Manage" -> "Event Viewer" -> "Windows Logs" -> "System."

Check for error or warning logs around the time you plugged in the USB device; these logs will provide more specific error codes.

4. Update the motherboard chipset and USB controller drivers:

Go to the official website of your computer brand or motherboard manufacturer to download and install the latest chipset drivers. This can fundamentally resolve USB compatibility issues.

Introduction

To improve editing efficiency and operational safety, the software provides two core features: Combine/split and layer lock/unlock.

The Combine/Split function allows multiple independent objects to be temporarily grouped into a single entity for unified operations or separated back into their original objects when needed. This is primarily used for batch transformations such as moving, scaling, and alignment.

The Layer Lock/Unlock function prevents accidental selection, modification, or deletion of objects on a specific layer while keeping the layer visible. It is typically used to protect completed backgrounds or reference content.

Both features use clear icons, explicit command names, and state-based dynamic interactions to ensure predictable behavior and reduce user error, especially in complex editing scenarios.

Function 1: Combine/Split

The purpose of this function is to temporarily bind multiple independent objects into a whole for operation or to disassemble the whole back into independent objects.

1. Icon and Text Design

• Combined icons: Icons that use two or more geometric shapes connected together.

• Split icons: Icons that use a graphic made up of multiple parts, with a clear visual cue of separation.

2. Directly use "Group" and "Split."

• Group: Combines selected objects into a single unit, making them easier to move and transform simultaneously.

• Split: Splits a grouped object into its original, independent objects.

3. Dynamic and Interactive Feedback

• Top-left menu: Right-click on a selected object to dynamically display menu items based on the selected object's status.

  • When multiple independent objects are selected, the menu displays "Combine."

  • When a grouped object is selected, the menu displays "Split."

• Changes after executing the command:

  • After executing "Combine," the control points of the selected objects disappear and are replaced by a unified control box.

  • After executing "Split," the unified control box disappears, and each sub-object's control points reappear.

• New User Guide: When the software is first launched or when entering the drawing module, a brief reminder card indicates that multiple objects can be "combined" for easier unified management.

Function 2: Layer Lock/Unlock

This feature prevents any accidental editing (selection, moving, deletion) of all objects on a specific layer while still maintaining their visibility and is commonly used to protect completed backgrounds or reference drawings.

1. Icon and Text Design

• Lock icon: Uses the classic closed lock icon. This is the universal lock/unlock symbol.

• Unlock icon: Uses the open lock icon.

2. Button/Menu Text

• Lock Layer: Locks the layer, preventing its contents from being selected or modified.

• Unlock Layer: Unlocks the layer, allowing its contents to be edited.

3. Dynamic and Interactive Feedback

• On-canvas behavior limitations: When a user attempts to click, select, or drag an object on a locked layer, no action is taken.

To achieve both engraving and cutting on wood, you can leverage the Layer Function in LightBurn. Here's how:

1. Separate Engraving and Cutting with Layers
In LightBurn, you can create different layers for engraving and cutting. Each layer is represented by a different color, which helps in organizing your work.

2. Assign Different Parameters for Each Layer
Once you've separated your design into distinct layers, you can assign specific parameters for engraving and cutting:

• • Use low power and fast speed for the engraving layer.
  • Use high power and slow speed for the cutting layer.

3. Process Each Layer Sequentially
By assigning different colors to each layer (for example, blue for engraving and red for cutting), LightBurn will handle each layer with its designated settings, allowing you to simultaneously engrave and cut on the wood in one go.

By following these steps, you can efficiently manage both engraving and cutting tasks on your wood projects, saving time and effort!

Core Concept: What are LightBurn layers?

You can think of LightBurn layers as transparent acetate sheets. Each sheet contains different graphics (such as cutting lines, engravings, marking lines, etc.), and each sheet is assigned different processing parameters (power, speed, number of passes, etc.). Finally, stacking all the sheets together creates a complete artwork, and the laser processes each layer in the order you set.

1. Location and Interface of the Layer Panel

1.1 Finding the Layer Panel

On the right side of the software interface, find the "Cuts/Layers" panel. If it's not visible, click Window > Cuts/Layers from the top menu bar to make sure it's selected.

1.2 Understanding the Interface

1. Layer List: Displays the name, color, status, and parameter previews of all layers.

2. Eye Icon: Controls layer visibility. Click to hide/show a layer.

3. Lock Icon: Locks a layer. Once locked, no objects on that layer can be selected or edited.

4. Color Block: Represents the display color of all objects on that layer (for onscreen differentiation only, does not affect actual engraving).

5. Parameter Bar: Displays the default processing mode (e.g., cutting, scanning/engraving) and key parameters (power, speed) for that layer.

2. Basic Layer Management

2.1 Creating a New Layer

When you import a file, a layer will be added.

• It's recommended that you name the new layer, such as "Cut Layer," "Image Engraving," "Vector Engraving," or "Marker Layer." Giving your layer a descriptive name is a good practice!

2.2 Setting the Current Working Layer

• In the Layers panel, click the layer you want to draw on. This layer will highlight, indicating it's the active layer.

• From now on, all new shapes you create using the drawing tools will automatically be placed on this active layer.

2.3 Setting the Layer Color

• After selecting a layer, you can select a new display color for it in the lower-left corner. This helps you quickly distinguish different layers visually.

2.4 Hiding and Locking Layers

• Click the "eye" icon to hide a layer. Hidden layers won't be engraved, making them ideal for temporarily shutting down certain processes or keeping backups.

• Click the "lock" icon to lock a layer. This prevents accidental selection or modification, which is very useful for complex shapes.

2.5 Deleting a Layer

• Select a layer and press Delete on your keyboard to delete it.

• Note: Deleting a layer will also delete all objects on that layer.

3. Setting Processing Parameters for Different Layers

This is the essence of layer management—assigning independent laser parameters to each layer.

3.1 Selecting a Layer: In the Layers panel, simply click the layer for which you want to set parameters.

3.2 Setting Parameters: The toolbar at the top of the software or the "Cutting/Engraving" parameter panel on the right will display the parameters for the currently selected layer.

3.3 Tool: Select a processing method, such as Cutting, Scanning (Engraving), Filling, or Image.

3.4 Power/Speed/Times: Set the desired process for the layer. For example:

• Cutting layer: Tool = Cut, Power = 100%, Speed = 200 mm/min, Times = 1
• Vector Engraving layer: Tool = Scan (Engrave), Power = 50%, Speed = 6000 mm/min, Line Count = 0.06 mm
• Image Engraving layer: Tool = Image, Mode = Grayscale, Power = 60%, Speed = 6000 mm/min, Line Count = 0.06 mm

3.5 Parameter Inheritance: All objects created on this layer will use these default parameters. You can also select individual objects and adjust them, which will override the layer's default settings.

4. Controlling the Processing Order: Layer Order

The laser machine's default processing order is top to bottom.

4.1 Adjusting the layer order: In the Layers panel, simply drag layers to change their top-to-bottom order.

4.2 Best Practice Order (generally):

• First: Internal engraving/shallow engraving (such as image engraving or fine text engraving)
• Middle: External engraving/deep engraving (such as a vector engraving border)
• Last: Cutting (Ensure all engravings are complete before removing the part from the material to prevent shifting)

5. Practical Workflow Example: Creating an Engraved Keychain

Suppose you want to create a wooden keychain that includes engraving a photo and cutting the outer edges.

5.1 Planning:

• This requires two steps: photo engraving and contour cutting.

5.2 Creating Layers:

• Import the file and create a new layer, name it "Photo Engraving," and set the color to blue.

• Import it again and create a second layer, name it "Contour Cutting," and set the color to red.

5.3 Setting Parameters:

• Select the layer, set the tool to Engraving and Filling, and set the appropriate power and speed (e.g., 60% power, 6000 mm/min speed).

• Select the "Contour Cutting" layer, set the tool to Cutting, and set the cutting parameters (e.g., 100% power, 200 mm/min speed).

5.4 Assigning Objects:

• Make sure the "Photo Engraving" layer is the active layer.

• On the "Contour Cutting" layer, draw the outline of the keychain (e.g., a circle or a custom shape).

5.5 Adjusting the Order:

• In the Layers panel, make sure the "Photo Engraving" layer is above the "Contour Cutting" layer. This way, the laser will engrave the fill first, then cut.

5.6 Preview and Export:

• Use the Preview function (computer icon) to check the results and order. You should see the blue areas engraved first, followed by the red areas cut.

• Click Engrave Directly to Device, and LightBurn will automatically export all layer data to the laser in the correct order and parameters.

Engraving defects such as misalignment, distorted lines, and incomplete circles are common issues encountered during laser engraving. These problems are typically related to mechanical instability or improper motion control settings. This article outlines the root causes and provides practical solutions to restore engraving accuracy on Longer laser engravers.

1. Common Issues

Users may observe the following symptoms during operation:

• Engraved patterns appear offset or shifted
• Straight lines become wavy or uneven
• Circular shapes are not fully closed
• Repeated designs show inconsistent positioning

These issues indicate that the motion system is not operating with the required precision.

2. Mechanical Adjustment

2.1 Eccentric Nut Calibration

The eccentric nuts control the pressure between the rollers and the guide rails. Improper adjustment can lead to instability or excessive resistance.

If the nuts are too loose, the laser module may wobble during movement, causing misalignment. If they are too tight, movement becomes restricted and may introduce vibration.

Adjust the eccentric nuts so that the rollers maintain firm contact with the rails while still allowing smooth and consistent movement.

2.2 Timing Belt Tension

Timing belts play a critical role in motion accuracy. Insufficient tension can result in positioning errors and deformation of engraved shapes.

Check both X-axis and Y-axis belts and ensure they are properly tensioned. The belts should feel firm when pressed lightly, without noticeable slack. Avoid overtightening, as this may increase wear on motors and bearings.

2.3 Timing Pulley Alignment

Misaligned pulleys can cause the timing belt to rub against the pulley edges, leading to friction, noise, and unstable motion.

Ensure that the timing belts run parallel to the motion axis. Adjust the pulley position if necessary to eliminate lateral friction and ensure smooth transmission.

2.4 Fastener Inspection

Loose mechanical components are a major source of engraving inaccuracies.

Inspect and tighten all relevant screws and connections, including:

• X-axis timing pulley set screws
• Y-axis motor couplings
• Pulley mounting screws

All components should be securely fixed to prevent any movement during operation.

3. Software Optimization

Mechanical adjustments should be complemented by proper software configuration.

3.1 Overcut Setting in LightBurn

Incomplete circles or open paths are often caused by insufficient overlap between the start and end points of a path.

In LightBurn, the Overcut parameter can be used to extend the cutting path slightly beyond the endpoint.

Set the Overcut value to 0.3 mm in the Advanced settings. This ensures that closed shapes such as circles are fully completed without visible gaps.

4. Additional Recommendations

Regular maintenance is essential to maintain engraving accuracy over time.

• Keep guide rails clean and free of dust or debris
• Periodically check belt tension and component tightness
• Use appropriate speed and power settings for detailed work
• Perform routine calibration to ensure consistent performance

5. Conclusion

Engraving misalignment, warped lines, and incomplete circles are typically caused by mechanical looseness, improper belt tension, pulley misalignment, or incorrect software settings. By systematically inspecting and adjusting both hardware and software parameters, users can effectively eliminate these issues and achieve precise, high-quality engraving results with Longer laser engravers.
